• Rear Panel I/O Ports:
  • 2 RJ45 LAN ports
  • 2x USB rear ports (USB 2.0 Compliant / 1.1 Compliant)
  • 1x VGA Port
  • 1 Fast UART 16550 serial ports 1 Header
  • Stacked PS/2 keyboard and mouse ports


• SAS:
  • Adaptec AIC-9410: Adaptec 8-port SAS Controller
  • RAID 0, 1, 10, JBOD support


• SAS ZCR:
  • RAID 0, 1, 5, 10, and JBOD support
  • Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-LPZCR2 or AOC-LPZCR3
  • (Card not included)


• Manageability:
  • ACPI/APM Power Management
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Internal/External modem remote ring-on
  • Monitors for CPU Cores, CPU0, CPU1, +3.3V, +5V, ±12V
  • Total of Four 4-pin and 3-pin fan headers supporting up to 5 fans
  • 8x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • 3-pin fan support
  • Low noise fan speed control
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • Optional IPMI (Intelligent Platform Management Interface) 2.0 / 1.5
  • Super Doctor III, Watch Dog, NMI

Supermicro X6DH3-G2 Specifications

• Model:

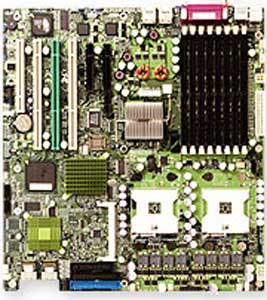

  • Supermicro X6DH3-G2 Motherboard

• Processor Support:
  • Dual 604-pin FC-mPGA4 Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type below:
  • Xeon Dual Core (Paxville) CPU with 2x2MB L2 Integrated Advanced Transfer Cache
  • Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
  • Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
  • Xeon LV (Low Voltage) CPU, up to 2.8 GHz
  • 800 MHz system bus

• Chipset:
  • Intel ® E7520 chipset
  • MCH + 6300ESB + PXH/V + 82541PI

• Memory:
  • Eight 240-pin DIMM sockets
  • Supports up to 16 GB DDR2 400MHz memory
  • Dual channel memory bus
  • Memory must be populated in pairs
  • Single-rank modules are recommended for 6+ DIMM support
  • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs, 1GB, 2GB, 1.8V only
  • Corrects single-bit errors, Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 Single Device Data Correction (SDDC)


• Expansion Slots:
  • 2 (x8) PCI-e slots
  • 1x 64-bit 133MHz PCI-X (3.3V) slot
  • 2x 64-bit 100MHz PCI-X (3.3V) slots
  • 1x 32-bit 33MHz PCI (5V)

• On-Board LAN:
  • Dual Intel® 82541PI Single-Port Gigabit Controller


• Storage:
  • 6300ESB 2-port SATA Controller
  • Dual EIDE channel supports up to four UDMA IDE devices
  • Supports ATA/100


• IPMI:
  • Support for Intelligent Platform Management Interface v.2.0
  • Dual EIDE channel supports up to four UDMA IDE devices
  • (Optional: AOC-IPMI20-E)


• Video:
  • ATI Rage XL SVGA PCI video controller
  • 8 MB of video memory


• BIOS:
  • 8Mb Flash EEPROM with Phoenix® BIOS
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3
  • BIOS Rescue Hot Keys
  • SMBIOS 2.3
  • Fan Speed Control


• Form Factor:
  • Extended ATX
  • 12" x 13.05" (30.5cm x 33.2cm)
