Supermicro X7SPA-H

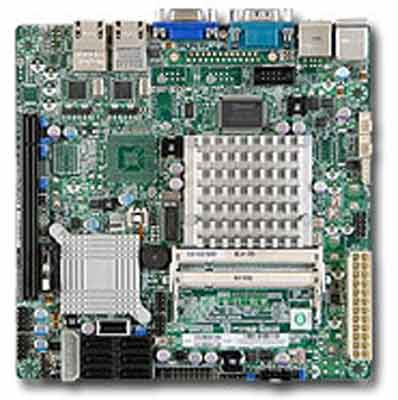

Supermicro X7SPA-H Motherboard

• Storage:

  • Intel ICH9R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows Only)

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83627DHG chip
  • 6 Serial ATA ports ( 3Gbps )
  • 2x RJ45 LAN port
  • 8x USB 2.0 / 1.1 compatible
  • 2 rear + 3 headers (5 ports) + 1 Type A connector)
  • VGA: D-Sub 15
  • PS/2 keyboard and mouse ports
  • 1x Fast UART 16550 serial port
  • 1x Serial Header


• Hardware Monitoring:

  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, VBAT, Memory, Chipset
  • CPU Core 1-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Total of two 4-pin fan headers
  • FAN: 2 x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on / off control
  • Support 3-pin fans (without speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 2 x Fan Connectors
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) Support
  • CPU / System Overheat LED
  • Chassis intrusion Detection
  • Chassis intrusion Header
  • SDDC Support
  • RoHS
  • Operating Temperature: 0 °to 55 °C
  • Non-operating Temperature: -40 °to 70 °C
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)
  • Class B


Motherboard Specifications

• Model:
  • Supermicro X7SPA-H Motherboard


• Processor Support:
  • Intel ® Atom  D510  processor

• Chipset:

  • Intel ICH9R
  • Intel 82574L

• FSB:
  • DMI

• Memory:

  • Two 200-pin SO-DIMM sockets
  • Supports up to 4 GB of unbuffered, non-ECC DDR2 667MHz SO-DIMM (Single Channel)
  • DDR2 667MHz unbuffered, non-ECC SO-DIMM
  • 256 MB, 512 MB, 1 GB, 2GB
  • 1.8V only

• Expansion Slots:
  • 1 (x4) PCI-Express (in x16 slot)

• On-Board Video:
  • Onboard Intel GMA3150 video

• On-Board LAN:

  • 2x Intel 82574L Gigabit Ethernet
  • Supports 10BASE-T, 100/1000BASE-TX, RJ45 output

• Form Factor/Dimensions:
  • Mini-ITX
  • 6.75" x 6.75" (17.15cm x 17.15cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• Power Configurations: ACPI/APM Power Management
• Main Switch Override Mechanism
• Suspend to RAM (STR)
• Power-on mode control for AC power recovery
• Internal / External modem remote ring-on
• BIOS:
• 8Mb Flash EEPROM with AMI BIOS
• Features: DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0
• USB Keyboard support
• SMBIOS 2.3
