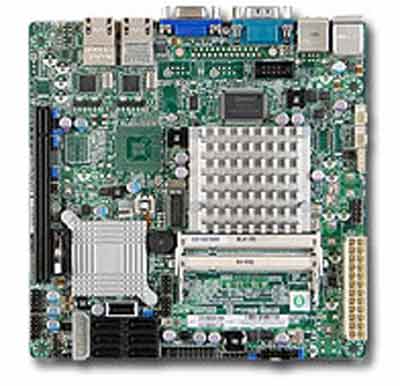

Supermicro X7SPA-H-D525 Motherboard

• Storage:

  • Intel ICH9R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows Only)

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83627DHG chip
  • 6 Serial ATA ports (3Gbps)
  • 2x RJ45 LAN port
  • 8x USB 2.0 / 1.1 compatible
  • 2 rear + 5 via headers + 1 Type A connector
  • D-Sub 15
  • PS/2 keyboard and mouse ports
  • 1x Fast UART 16550 serial port
  • 1x Serial Header


• Hardware Monitoring:

  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, VBAT, Memory, Chipset
  • CPU Core 1-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • FAN: Total of two 4-pin fan headers
  • 2 x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on / off control
  • Support 3-pin fans (without speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 2 x Fan Connectors
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) Support
  • CPU / System Overheat LED
  • Chassis intrusion Detection
  • Chassis intrusion Header
  • SDDC Support
  • RoHS
  • Environmental Spec.: Operating Temperature: 0 °to 55 °C
  • Non-operating Temperature: -40 °to 70 °C
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)


Motherboard Specifications

• Model:
  • Supermicro X7SPA-H-D525 Motherboard


• Processor Support:
  • Intel ® Atom  D525  processor

• Chipset:

  • Intel ICH9R Express chipset
  • Dual Intel 82574L G-bit ethernet controller

• FSB:
  • DMI

• Memory:

  • Two 204-pin SO-DIMM sockets
  • Supports up to 4GB of unbuffered, non-ECC DDR3 800MHz SO-DIMM (Single Channel)
  • Some 1066MHz and 1333MHz memory can be used, but will operate at 800MHz
  • DDR3 800MHz unbuffered, non-ECC SO-DIMM
  • 2GB, 1GB
  • 1.5V only

• Expansion Slots:
  • 1 (x4) PCI-E 2.0 (in x16) slot

• On-Board Video:
  • Integrated Intel GMA3150 video

• On-Board LAN:

  • Dual Intel 82574L Gigabit Ethernet LAN
  • Supports 10BASE-T, 100/1000BASE-TX, RJ45 output

• Form Factor/Dimensions:
  • Mini ITX
  • 6.75" x 6.75" (17.15cm x 17.15cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• Power Configurations: ACPI/APM Power Management
• Main Switch Override Mechanism
• Suspend to RAM (STR)
• Power-on mode control for AC power recovery
• Internal / External modem remote ring-on
• BIOS:
• 8Mb Flash EEPROM with AMI BIOS
• Features: Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0
• USB Keyboard support
• SMBIOS 2.3
