• Hardware Monitoring:
  • On board Analog Devices ADM1027 Hardware Monitoring chip
    Total of seven 3-pin fan headers with tachometer monitoring and five of them with PWM control
    3-pin chassis intrusion header
    Temperature and voltage monitoring
    IPMB connector; Watchdog timer
    Supports Tyan M3289 SMDC via 2x25 pin header



• Rear Panel I/O Ports:
  • One floppy connector for up to two drives
    Two 9-pin serial ports (one via optional cable)
    One 25-pin ECP/EPP/SPP parallel header (via optional cable)
    Four USB 2.0 ports (two front via optional cable)
    PS/2 keyboard and mouse ports

• Internal I/O Interface:
  • (6300ESB Hance Rapids)
    Up to two bus-master IDE channels
    Supports up to 4 ATA-100/66/33 IDE ATAPI-compliant devices


• Industrial Standard:
  • FCC Class B (Declaration of Conformity)
    European Community CE

• Special Features:
  • Two ICH5-S integrated SATA ports up to 1.5 Gbit/s
    Supports SATA RAID 0,1
    Silicon Image Sil3114 SATA controller
    Four 1.5Gbit/S SATA ports
    Supports SATA RAID 0, 1, 10

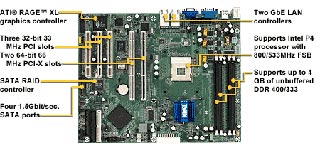

Motherboard Specifications

• Model:
  • Tyan S5112G2 Motherboard

• Processor Support:
  • Supports one Intel ® Pentium ® 4 "Northwood" or "Prescott" processor, also supports Celeron processor up to 2.8GHz


• FSB:
  • 800/533MHz

• Chipset:
  • Intel ® E7210 ("Canterwood ES")


• Memory:
  • Four 184-pin 2.5V DDR DIMM sockets
  • Dual/Single channel memory bus
  • Supports up to 4GB of unbuffered DDR400/333

• Expansion Slots:
  • Two 64-bit PCI-X (3.3v) 66MHz slots
  • Three 32-bit 33MHz PCI 2.2 (5v) slots
  • Total of five usable slots


• On-Board Video:
  • ATI ® RAGE XL PCI graphics controller
    8MB frame buffer (SDRAM)

• On-Board LAN:
  • Up to two GbE onboard LAN controllers
    - Intel 82547GI CSA GbE NIC
    - Intel 82541GI PCI GbE NIC

• BIOS:
  • Award BIOS 8Mb flash ROM
    Supports ACPI 1.0, PnP, DMI 2.0
    Auto configuration of IDE hard disk types
    User settings of hardware monitoring
    Multiple boot options
    Power Management: ACPI S1, S3, S4 and S5

• Form Factor:
  • ATX 2.03 Footprint (12"x9.6", 305x244mm)
