• Hardware Monitoring:
  • Total of seven 3-pin fan headers
  • Six fan headers with tachometer monitoring
  • One 2-pin chassis intrusion header
  • Temperature, voltage, and fan monitoring
  • Watchdog timer

• Server Management:
  • QLogic Zircon Baseboard Management Controller (BMC) based on powerful ARM7
  • Tailored for IPMI highest 1.5 Spec.
  • Supports KCS and BT styles
  • Supports flexible Windows and Linux based Management Solution
  • Supports RMCP and SNMP protocols
  • Supports ASF standard and EMP
  • I2 C serial multi-master controllers and UARTs
  • Built-in IPMB connector
  • Supports remote Power on/off and reset support (IPMI over LAN); SMDC via built-in 2x25 header



• Rear Panel I/O Ports:
  • ATX12V/EPS12V universal power connector
  • Serial (one) and VGA (one) connector
  • Stacked USB (two) connectors
  • Stacked PS/2 keyboard and mouse connectors
  • Two RJ-45 Side-by-side connectors with LEDs


• Internal I/O Interface:
  • One floppy connector supports up to two drives
  • Two 9-pin serial ports (one connector and one header)
  • One 25-pin ECP/EPP/SPP parallel header
  • Four USB 2.0 ports (two rear, two via header)
  • PS/2 keyboard and mouse connectors

• Miscellaneous:
  • FCC Class B (Declaration of Conformity)
  • European Community CE


• LAN:
  • Intel® 82546EB dual-channel Gigabit Ethernet controller (Default configuration) - Two RJ-45 LAN connectors with LEDs - Connected to an 133MHz PCI-X bus
  • Two 4-pin headers for external LED output
  • Manufactureing Option: Intel 82545EM Gigabit Ethernet controlled - One RJ-45 LAN connectors with LEDs - Connected to a PCI-X bus
  • Intel® 82551QM Fast Ethernet controller - One RJ-45 LAN connector with LEDs
  • Two 4-pin headers for external LED output

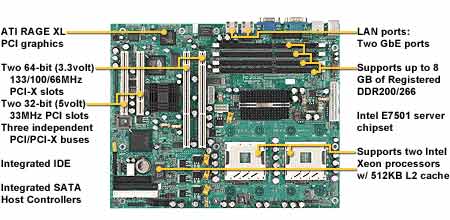

Motherboard Specifications

• Model:
  • Tyan Tiger i7501S S2725G2NR


• Processor:
  • Dual mPGA604 ZIF sockets
  • Supports up to two Intel ® Xeon processors with 512KB of integrated L2 cache
  • Onboard 4-phase VRM (VRM 9.1 spec)


• FSB (Front Side Bus):
  • Front-Side Bus support for 533/400MHz



• Chipset:
  • Intel ® E7501 server chipset
  • MCH + ICH5 + P64H2 + FWH
  • Intel ® P64H2 supports two PCI(-X) buses
  • Winbond W83627HF Super I/O chip
  • Winbond W83782D hardware monitoring chip



• Memory:
  • Four 184-pin 2.5V DDR DIMM sockets
  • Supports up to 8GB of Registered DDR266/200
  • Dual channel memory bus
  • Supports Registered memory only
  • Supports ECC type memory modules


• Expansion Slots:
  • 3 independent PCI/PCI-X buses
  • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots
  • Two 32-bit 33MHz (5V) PCI slots


• IDE Controllers:
  • Provides two PCI bus master channels for up to four UDMA IDE devices
  • Support for UDMA-100/66/33 IDE drives and ATAPI-compliant devices




• Serial ATA Host Controllers:
  • Provides independent DMA operation on 2 ports
  • Data transfer rates up to 1.5Gb/s
  • Supports RAID 0 or 1 (option with ICH5R)
  • Note: maximum number of IDE devices supported with any combination of Integrated IDE and SATA IDE is four devices. For example: two SATA and two P-ATA (total=4)


• BIOS:
  • AMI® BIOS 8.0 on 4Mbit Flash ROM
  • LAN remote boot (PXE) and SMBIOS v2.3
  • BIOS Boot Specification v3.1 (BBS) support
  • Auto configuration of IDE hard drive types

• Form Factor:
  • ATX footprint (12" x 10.25")
