Tyan Tomcat i7210 (S5112G2NR)

Part # 108295

Condition : New- Open Box

| Warranty: 365 days

Brand : Tyan

| Log in to add review

Rate this product:

Quantity: Out of Stock

Note: Click “Notify”, enter your email, and get alerted when the item is back in stock.

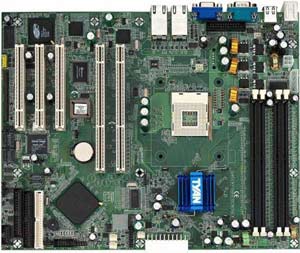

Tyan Tomcat i7210 S5112G2NR Motherboard

Tyan Tomcat i7210 (S5112G2NR) Motherboard

Socket 478 P4 FSB 800, Intel E7210 & 6300ESB chipset, DDR Up to 4 GB, SATA, RAID, Video, USB, Dual LAN Support.

Tyan Tomcat_i7210_S5112G2NR Motherboard, Socket 478 P4 800 Mhz FSB, Chipset Intel ® E7210 & 6300ESB, Dual LAN, USB, 2 PCI Express, Video, 3 PCI slot, DDR 400 Mhz, IDE, SATA, RAID Support, Tyan 1U/2U Riser Support, ATX 2.03 (12 x 9.6)

Internal I/O Interface:
- (4) USB 2.0 ports (via 2 headers)
- (1) floppy ports
- 2 Serial Ports (One using Cable)
- ! Parallel Port using Cable
- (1) 9-pin front panel audio header
Rear Panel I/O Ports:
- Stacked PS/2 keyboard & mouse connectors
- Stacked (1) serial
- (2) stacked USB 2.0 ports
- 2x RJ45 LAN ports

Regulatory:
- FCC Class B (Declaration of Conformity)
- European Community CE (DoC)
Tyan 1U/2U Riser Support:
- Supports Tyan M2033, M2037, M2037R, M2053 1U Riser Cards
- Supports Tyan M2042, M2043, M2043X, M2044 2U Riser Cards

System Management:
- Supports Tyan M3289 SMDC
- On Board Analog Devices ADM 1037 H/W Monitoring Clip
- Total seven 3-Pin header With Tachometer
- Chasis Intrusion header
- Temperature and Voltage monitoring
- IPMB connector
- Wachdog Timer

Motherboard Specifications

Model:
- Tyan Tomcat i7210 (S5112G2NR) Motherboard

Processor Support:
- Single mPGA478 ZIF socket supports Intel Pentium 4 "Northwood" or "Prescott"/ Celeron processor, upto 2.8GHz

Chipset:
- Intel E7210 & 6300ESB
FSB:
- 800/533 MHz
Memory:
- 4x 184pin DDR-400/333 DIMMs
- Dual/Single channel, ECC/non-ECC, Unbuffered
- Up to 4GB
Expansion Slots:
- 2x 64-bit/66MHz PCI-X slots
- 3x 32-bit/33MHz PCI slots

On-Board LAN:
- Intel 82547GI + Intel 82541GI Gigabit Ethernet Controller
Storage:
- 2x ATA-100 channels
- Supports Up to 4 ATA 100 IDE ATAPI Devices
Integrated SATA Controller:
- 2x SATA ports support RAID 0, 1 (ICH5-S)
- 4x SATA ports support RAID 0, 1, 10 (Silicon Image Sil3114)
Integrated Video :
- ATI RAGE XL PCI Graphics Controller
- 8MB frame buffer video memory

BIOS:
- AWARD BIOS with 8Mbit Flash ROM
- Supports ACPI 1.0, PnP, DMI 2.0
- User-configurable H/W monitoring
- Auto-configuration of hard disk types
- Multiple boot options
- ACPI S1, S3, S4, S5 power Management
Form Factor:
- ATX 2.03 (12" x 9,6")
- ATX 12V power connectors
- Optimazed for 1U Rack, 2U Rackmount or pedestal chassis
