Asus P5N-E SLI(GREEN)

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x IEEE 1394a
  • 1 x External SATA
  • 1 x Parallel port
  • 1 x S/PDIF Out
  • 5.1 Channel audio connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Power Connector :
  • 1 x 24pin main power
  • 1 x 4pin CPU power


• Form Factor:
  • ATX Form Factor
  • 12 inch x 9 inch ( 30.5 cm x 22.9 cm )

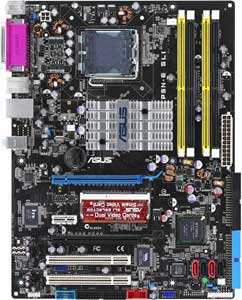

Asus P5N-E SLI Motherboard

• Model:
  • Asus P5N-E SLI Motherboard

• Processor Support:
  • Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D
  • Compatible with Intel ® 05B/05A/06 processors
  • Support Intel ® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1333/1066/800 Mhz


• Chipset:
  • NVIDIA nForce 650i SLI

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 800/667/533 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 2 x PCI Express x16 Single VGA mode: x16 (Default), SLI mode: x8, x8
  • 1 x PCIe x1
  • 2 x PCI 2.2


• Storage:
  • 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
  • 4 x SATA 3Gb/s ports Support RAID 0,1,0+1,5,JBOD
  • 1 x External Serial ATA 3.0 Gb/s (SATA On-the-Go)


• Audio:
  • Realtek ALC 883 6 -Channel High-Definition Audio CODEC
  • Coaxial / Optical S/PDIF out ports at back I/O
  • Support Jack-Sensing, Enumeration, Multi-streaming


• On-Board LAN:
  • Gigabit LAN featuring AI Net2 Marvell 88E1116 PHY


• Firewire:
  • Supports 2 x 1394a ports connector onboard


• BIOS:
  • 4 Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring,PXE,RPL, AI NET2
