• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x D-Sub port
  • 1 x parallel port
  • 1 x serial port
  • 3 x audio jacks (Line In/Line Out/Microphone)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek 8201N chip (10/100 Mbit)


• Management:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU overheating warning
  • CPU/System/Power fan fail warning
  • CPU fan speed control

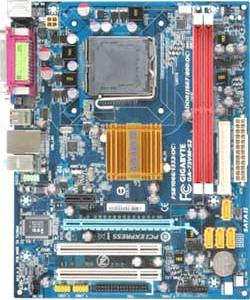

Gigabyte GA-73VM-S2 Motherboard

• Model:
  • Gigabyte GA-73VM-S2 Motherboard

• Processor Support:
  • Support for an Intel ® Core 2 Extreme processor/ Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® processor
  • Socket LGA 775


• FSB:
  • 1333/1066/800 MHZ


• Chipset:
  • NVIDIA® GeForce 7050

• Memory:
  • 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
  • Support for DDR2 1066/800/667 MHz memory modules


• Expansion Slots:
  • 1 x PCI-E x16
  • 1 x PCI-E x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 3 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1


• Audio:
  • Realtek ALC662 codec high definition
  • 2/4/5.1-channel
  • Support for CD In
  • Support for S/PDIF Out


• Video:
  • Integrated in the NVIDIA® GeForce 7100/nForce 630i chipset


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • Micro-ATX Form Factor, 24.4cm x 19.4cm
