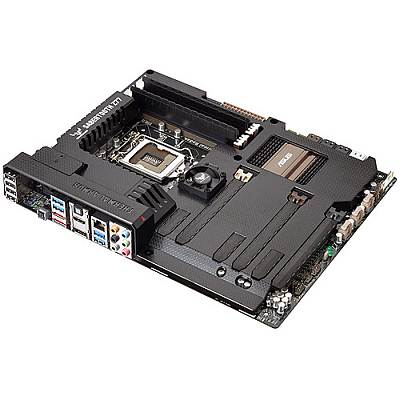

ASUS SABERTOOTH Z77 Motherboard

• Rear Panel I/O Ports:
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0
  • 4 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
  • 1 x USB BIOS Flashback Button(s)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 4 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 1 x CPU OPT Fan connector(s) (4 -pin)
  • 4 x Optional Fan connector(s) (4 -pin)
  • 2 x Assistant Fan connector(s) (3 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Q-Connector)
  • 1 x MemOK! button(s)
  • 1 x Clear CMOS jumper(s)

• USB Ports:
  • Intel ® Z77 chipset : *6
  • 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • ASMedia ® ASM1042 controller : *6
  • 2 x USB 3.0 port(s) (2 at back panel, blue)
  • Intel ® Z77 chipset :
  • 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
• Accessories:
  • User's manual
  • Accessory Guide
  • ASUS Q-Shield
  • 2 x SATA 3Gb/s cable(s)
  • 2 x SATA 6Gb/s cable(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)
  • 2 x Accessory Fan(s) ( 35 mm )
  • 1 x TUF Certification card(s)
  • 1 x TUF 5 Year Warranty manual(s) (by region)
  • 1 x TUF Inside sticker(s)
  • 1 x Accessory Package(s):
  • 1 x 40mm I/O Cover fan lid(s)
  • 3 x PCIe x16 slot dust cover(s)
  • 2 x DRAM slot dust cover(s)
  • 3 x PCIe x1 slot dust cover(s)
  • 2 x Short fan screw(s)
  • 4 x Long fan screw(s)
  • 1 x Adhesive Sponge(s) for 35mm Fan
• On-Board LAN:
  • Intel ® 82579V, 1 x Gigabit LAN Controller(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
    ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Support Disc:
  • Drivers
  • Anti-virus software (OEM version)
  • ASUS Update
  • ASUS Utilities

Motherboard Specifications

• Model:
  • ASUS SABERTOOTH Z77 Motherboard

• CPU:
  • Intel ® Socket 1155 for 3rd/2nd Generation Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
  • Supports Intel ® Turbo Boost Technology 2
    * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.
• Chipset:
  • Intel ® Z77
• Memory:
  • 4 x DIMM, Max. 32GB, DDR3 MHz Memory
  • Dual Channel Memory Architecture
  • Supports Intel ® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
• Expansion Slots:
  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2
  • 1 x PCIe 2.0 x16 (x4 mode, black) *3
  • 3 x PCIe 2.0 x1
• On-Board Audio:
  • Realtek ® ALC892 8-Channel High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
  • Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  • Blu-ray audio layer Content Protection
  • Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports NVIDIA ® Quad-GPU SLI Technology
  • Supports AMD Quad-GPU CrossFireX Technology
  • Supports LucidLogix ® Virtu MVP Technology *1
• On-Board Video:
  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DisplayPort ports
  • Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
  • Maximum shared memory of 1696 MB
  • Supports Intel ® HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Storage:
  • Intel ® Z77 chipset :
  • 2 x SATA 6Gb/s port(s), brown
  • 4 x SATA 3Gb/s port(s), black
  • Support Raid 0, 1, 5, 10
  • Supports Intel ® Smart Response Technology, Intel ® Rapid Start Technology, Intel ® Smart Connect Technology *4
  • ASMedia ® ASM1061 controller : *5
  • 2 x SATA 6Gb/s port(s), gray
  • 2 x eSATA 6Gb/s port(s), red
• Special Features:
  • TUF ENGINE! Power Design :
    8 +4 +2 Digital Phase Power Design
    TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
    ASUS DIGI+ Power Control Utility
  • Ultimate COOL! Thermal Solution :
    TUF Thermal Armor
    TUF Thermal Radar
  • Safe & Stable! Guardian Angel :
    Dust Defender
  • ASUS Exclusive Features :
    USB BIOS Flashback
    MemOK!
    AI Suite II
    USB Charger+
    Anti-Surge
    ESD Guards
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    Network iControl
    USB 3.0 Boost
  • ASUS EZ DIY :
    ASUS O.C. Profile
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 2
    ASUS MyLogo 2
    Multi-language BIOS
  • ASUS Q-Design :
    ASUS Q-Shield
    ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    ASUS Q-Slot
    ASUS Q-DIMM
    ASUS Q-Connector

• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
