Biostar GF7050V-M7

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x COM Port
  • 1 x VGA Port
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • RTL8201CL - 10/100 PHY


• Power Connector :
  • 1 x 24pin main power
  • 1x 4pin CPU power


• Form Factor:
  • MicroATX Form Factor, 18.5cm X 24.4cm

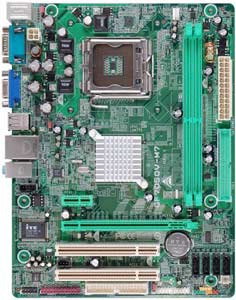

Biostar GF7050V-M7 Motherboard

• Model:
  • Biostar GF7050V-M7 Motherboard

• Processor Support:
  • Supports Intel Core 2 Extreme /Core 2 Quad/Core 2 Duo/Pentium D/Pentium 4/Celeron® 400 Series/Celeron® D Processor
  • Supports Intel Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • 800/1066/1333MHz


• Chipset:
  • NVIDIA GeForce 7050

• Memory:
  • Support Dual Channel DDR2 533/667/800 MHz
  • 2 x DDR2 DIMM Memory Slot
  • Max. Supports up to 4GB Memory
  • DDR2 800MHz Will Operate In Overclocking Mode


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3Gb/s
  • Support SATA RAID: 0,1


• Audio:
  • Realtek ALC662 6-Channel HD Audio
  • 2/4/5.1
  • Compliant with HD specification


• Video:
  • NVIDIA GeForce 7050 GPU, On Board Graphic
  • Max. Memory Share Up to 512MB(Under OS By Turbo Cache),GPU Frequency @500MHz


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specificatio
