• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x VGA Port
  • 1 x Serial Ports
  • 1 x Printer port
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8201CL PHY
  • 10/100 Controller


• Form Factor:
  • Micro-ATX Form Factor
  • 20.17cm X 24.38cm

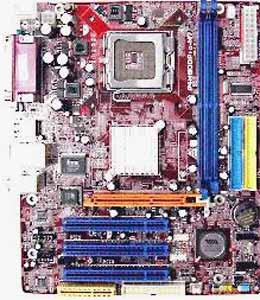

Biostar P4M80 PRO-M7 Motherboard

• Model:
  • Biostar P4M80 PRO-M7 Motherboard

• Processor Support:
  • Supports Intel ® Pentium ® D/Pentium ® 4/Celeron ® 400 Series/Celeron ® D Processor
  • Supports Intel Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • 533/800/1066MHz


• Chipset:
  • VIA P4M800 Pro

• Memory:
  • Support Single Channel DDR2 400/533 MHz
  • 2 x DDR2 DIMM Memory Slot
  • Max. Supports up to 2GB Memory


• Expansion Slots:
  • 1 x AGP
  • 1 x CNR Slot
  • 3 x PCI 32bit/33MHz slots


• Storage:
  • 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
  • 2 x SATA 1.5Gb/s
  • Support SATA RAID: 0,1


• Video:
  • VIA S3 UniChrome Graphics Controller
  • Max Memory Share upto 64MB


• Audio:
  • Realtek ALC655 6-Channel HD Audio
  • 2/4/5.1
  • Compliant with HD specification


• Power Connector :
  • 1 x 20pin main power
  • 1x 4pin CPU power


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD
  • Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification
