ECS 945P-A V3.0

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Serial port (COM1)
  • 1 x Parallel port (LPT1)
  • 1 x Audio port (Line-in,4x Line-out, SPDIF out)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller

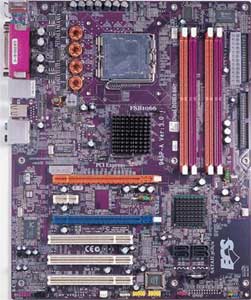

ECS 945P-A Motherboard

• Model:
  • ECS 945P-A Motherboard

• Processor Support:
  • Supports Intel® Core Extreme / Core2 Duo / Pentium Dual Core / Pentium D / Pentium 4 / Celeron D
  • Support Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • FSB 1066/800/533 MHz


• Chipset:
  • Intel ® 945P

• Memory:
  • Dual-channel DDR2 memory architecture
  • 4 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support 667/533/400 DDR2 SDRAM


• Expansion Slots:
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x16 slot (x4)
  • 1 x PCI Express x1
  • 3 x PCI 32bit/33MHz slots


• Storage:
  • 1 x Ultra DMA 100/66
  • 4 x Serial ATAII 3.0Gb/s devices


• Audio:
  • Realtek ALC655 6-Channel audio CODEC
  • 2/4/5.1
  • Compliant HD audio spec.


• BIOS:
  • AMI BIOS with 4Mb SPI ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • ATX Form Factor 305mm x 244mm
