K9N4SLI-F

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 4 x USB 2.0 Ports
  • 1 x Serial port (COM 1)
  • 1 x RJ 45 Port
  • 1 x 6 in 1 audio jack

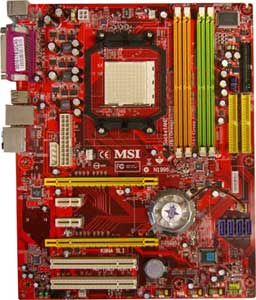

MSI K9N4SLI-F Motherboard

• Model:
  • MSI K9N4SLI-F Motherboard

• Processor Support:
  • AMD® Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package.
  • HyperTransport supporting speed up to 1GHz (2000MT/s)


• Chipset:
  • NVIDIA® nForce 500 SLI

• Memory:
  • DDR2 533/667/800 SDRAM (240pin/ 1.8V)
  • 4 DDR2 DIMMs (8GB Max)
  • Supports a maximum memory size up to 2 GB.


• Expansion Slots:
  • 2 PCI Express x16 slots, compatible with PCI Express x8 Speed (Support SLI technology)
  • 2x PCI Express x1
  • 2x PCI slots (support 3.3v/5v PCI bus interface).

• On-Board LAN:
  • Supports 10/100/1000 Fast Ethernet by Vitesse VSC8601


• Audio:
  • Chipset integrated byRealtek® ALC850
  • Compliant with AC97 v2.3 Spec


• Storage:
  • Two IDE ports by NVIDIA® nForce 500 SLI
  • Supports Ultra DMA 66/100/133 mode
  • Supports PIO, Bus Master operation mode
  • 4 SATA II ports by by NVIDIA® nForce 500 SLI
  • Supports storage and data transfers at up to 300 MB/s
  • SATA II 1~4 supports RAID 0, 1 mode by NVIDIA® nForce 500 SLI

• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.


• Form Factor:
  • ATX Form Factor 30.5cm(L) x 24.5cm(W)
