Foxconn A690GM2MA-8KRS2H

Part # 110210

Condition : New- Retail Box

| Warranty: 365 days

Brand : Foxconn

| Log in to add review

Rate this product:

Quantity: Out of Stock

Note: Click “Notify”, enter your email, and get alerted when the item is back in stock.

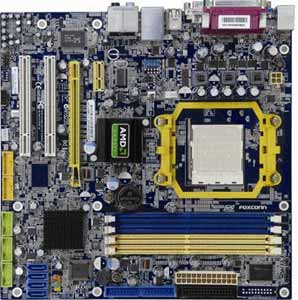

Foxconn A690GM2MA-8KRS2H Motherboard

Supports Socket AM2 for AMD Athlon 62 x2 Dual core / Athlon 64FX / Athlon 64 / Sempron processors, AMD 690G chipset, 1 x PCI Express X16, 1 x PCI Express x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video (DVI & Tv Out & VGA), Audio, SPDIF, Micro-ATX Form Factor

Foxconn A690GM2MA-8KRS2H Motherboard, Supports Socket AM2 for AMD Athlon 62 x2 Dual core / Athlon 64FX / Athlon 64 / Sempron processors, AMD 690G chipset, 1 x PCI Express X16, 1 x PCI Express x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video (DVI & Tv Out & VGA), Audio, SPDIF, Micro-ATX Form Factor

Internal I/O Interface:
- 1 x Floppy connector
- 4 x SATA 3Gb/s connectors
- 3 x USB 2.0/1.1 headers
- 2 x COM
- 1 x TV-out header
- 1 x SPDIF out header
- 1 x IDE Port

Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x DVI
- 1 x Parallel port (SPP/ECP/EPP)
- 1 x VGA port
- 1 set 7.1 channel Audio Jack (6 jacks)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
Special Features :
- Tiger One
- Super Logo
- Live Update
- Tool to create RAID Floppy Disk
- BIOS Q.B.U

Foxconn A690GM2MA-8KRS2H Motherboard

Model:
- Foxconn A690GM2MA-8KRS2H Motherboard

Processor Support:
- Supports AMD Athlon 62 x2 Dual core / Athlon 64FX / Athlon 64 / Sempron processors
- Socket AM2
FSB:
- 2000MT/s
Chipset:
- AMD 690G

Memory:
- Four 240-pin dual channel DDR2 DIMM slots
- Supports dual channel DDR 800/667/533 memory
- Up to 8GB
Expansion Slots:
- 1 x PCI-E x16
- 1 x PCI-E x1
- 2 x PCI 32bit/33MHz slots
Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
- Support RAID 0, 1, 0+1, and JBOD
Audio:
- 7.1 channel (Realtek ALC883)
- 2/4/5.1/7.1
- Support for CD In
- Support for S/PDIF Out
Video
- Integrated nVidia Graphics Controller
On-Board LAN:
- Realtek 8110SC (10/100/1000)
BIOS:
- AWARD BIOS
- 1 x 4 Mbit flash
- ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3
Form Factor:
- Micro-ATX, 9.6 .x 9.6 inch
