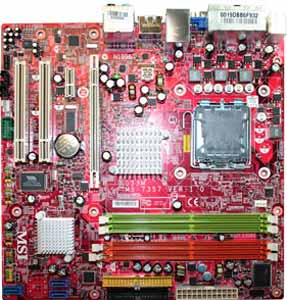

MSI G33M-FI Motherboard
Supports Socket 775 for Intel Core2 Quad, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE processors in LGA 775 package, Intel ® G33chipset, 1 PCI-E 16x, 1 PCI-X 1X, 2 PCI, DDR2, LAN, USB, IDE, SATA2, eSATA, Firewire, Audio, SPDIF, Video, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 6 x USB 2.0 connector (12 Total )
- 1 x Floppy disk drive connector
- 1 Serial port (COM A, Pin-Out)
- 1 parallel port supports SPP/EPP/ECP mode (Supported by pin-out, JLPT1)
- 2x SATA connectors
- 1 IDE ports support 2 IDE devices
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 Mouse
- 2 IEEE1394 ports (rear port + front pin-out)
- 1 VGA port
- 6 x USB 2.0 Ports
- 2x eSATA Ports
- 1 x RJ 45 Port
- 1 6-in-1 audio jack (S/SPDIF out)
- Video:
- Intel GMA 3100 Graphic Controller
- Audio:
- High Definition link controller integrated in Intel ICH9 chip
- 8 channels audio codec Realtek 888
- Flexible 8 Ch. audio with jack sensing
- Compliance with Azalia 1.0 spec
- Form Factor:
- Micro-ATX Form Factor 9.5in.(L) x 9.5in.(W)
|
MSI
G33M-FI
Motherboard
- Processor Support:
- Supports Socket 775 for Intel Core2 Quad, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE processors in LGA 775 package
- Supports Intel Hyper-Threading technology
- Supports EIST techonology
- Supports Intel Dual Core Technology to 1066MHz and up
- FSB:
- Chipset:
- Memory:
- Supports 4 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
- Supports up to 8GB memory size
- Support Dual Channel DDR2 667/800MHz
- Expansion Slots:
- One PCI Express X 16 slot
- One PCI Express X 1 slot
- Two PCI slots (support 3.3v/5v PCI bus interface).
- On-Board LAN:
- Marvell 88E8056 PCI-Express Gb LAN controller
- Support 10/100/1000 Mb/s
- IEEE 1394:
- VIA 6308P chipset
- Supports up to two 1394 ports (Rear panel x 1 + Front pin-out x 1)
- Transfer rate up to 400 Mbps
- Storage:
- One Ultra DMA 133 IDE port by Marvell 88SE6111
- Supports PIO, Bus Master operation modes
- Can connect up to 2 Ultra ATA drives
- Serial ATAII controller integrated in ICH9
- Transfer rate is up to 300MB/s
- Supports ACHI controller
- Can connect up to 4 SATA2 drives (including 2 eSATA)
- BIOS:
- The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
|
