Microstar / MSI P31NEO-F

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port
  • 1 6-in-1 audio jack (S/SPDIF out)


• Audio:
  • High Definition link controller integrated in Intel ICH7 chip
  • Audio codec Realtek 888
  • Flexible 8 Ch. audio with jack sensing
  • Compliance with Azalia 1.0 spec


• Form Factor:
  • ATX Form Factor
  • 12in.(L) x 8.6in.(W)

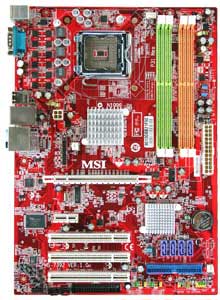

MSI P31 Neo-F Motherboard

• Model:
  • MSI P31 Neo-F Motherboard

• Processor Support:
  • Supports Socket 775 for Intel Core2 Quad, Core2 Extreme, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
  • Supoprts Intel 05B/05A and 04B/04A processors
  • Supports Intel Hyper-Threading technology
  • Supports EIST techonology
  • Supports Intel Quad Core Technology to 1333MHz and up


• FSB:
  • 800/1066/1333 MHz


• Chipset:
  • Intel® P31

• Memory:
  • Supports 4 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
  • Supports up to 4GB memory size
  • Support Dual Channel DDR2 667/800MHz


• Expansion Slots:
  • One PCI Express X 16 slot
  • One PCI Express X 1 slot
  • Three PCI slots (support 3.3v/5v PCI bus interface).

• On-Board LAN:
  • Realtek RTL8111B PCI-Express Gb LAN Controller
  • Support 10/100/1000 Mb/s


• Storage:
  • One Ultra DMA 66/100 IDE controller integrated in ICH7
  • Supports PIO, Bus Master operation modes
  • Can connect up to 2 Ultra ATA drives
  • Serial ATAII controller integrated in ICH7
  • Transfer rate is up to 300MB/s
  • Can connect up to 4 SATA2 drives


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
