• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 2 x IEEE 1394a ports
  • 1 x coaxial S/PDIF Out connector
  • 1 x optical S/PDIF Out connector
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • 8 x USB 2.0/1.1 ports
  • 2 x RJ 45 Port


• Audio:
  • ALC889A with DTS Connect enables high quality Full Rate Lossless Audio and support for both Blu-ray and HD DVD.


• Management:
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU Smart Fan Control


• Form Factor:
  • ATX form factor, 305 x 244mm

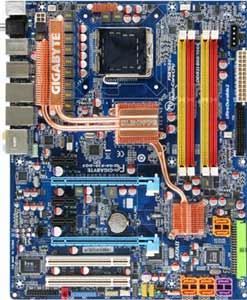

Gigabyte GA-X38-DQ6 Motherboard

• Model:
  • Gigabyte GA-X38-DQ6 Motherboard

• Processor Support:
  • Support for an Intel® Core 2 Extreme processor/ Intel® Core 2 Quad processor/ Intel® Core 2 Duo processor/ Intel® Pentium processor Extreme Edition/ Intel® Pentium D processor/ Intel® Pentium 4 processor Extreme Edition/ Intel® Pentium 4 processor in the LGA 775 package
  • Support for Intel® Hyper-Threading Technology


• FSB:
  • 1600/1333/1066/800 MHz


• Chipset:
  • Intel® X38

• Memory:
  • 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
  • Dual channel memory architecture
  • Support for DDR2 1200/1600/1333/1066/800 MHz memory modules


• Expansion Slots:
  • 2 PCI Express x16 slot (Support PCI Express 2.0)
  • 3 x PCI Express x 1
  • 2 x 32-bit 33MHz PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • Features SATA 3Gb/s with Quad eSATA 2 interface .6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3,
    SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
  • 2 x SATA 3 Gb/s connectors (GSATAIIA, GSATAIIB) supporting up to
    2 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1 and JBOD


• Firewire:
  • T.I. TSB43AB23 chip
  • Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394 bracket connected to the internal IEEE 1394 header)


• On-Board LAN:
  • 2 x Realtek 8111B chip (10/100/1000 Mbit)


• BIOS:
  • AWARD BIOS
  • 2 x 8 Mbit flash
  • Support for Dual BIOSTM
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0
