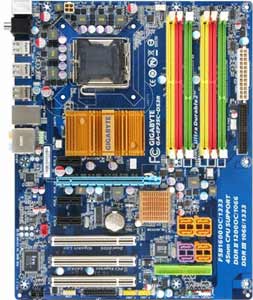

Gigabyte GA-EP35C-DS3R Motherboard
Support for an Intel ® Core 2 Extreme processor/ Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® processor in LGA 775, Intel ® P35 chipset, 1 x PCI Express X16, 3 x PCI Express x1, 3 x 32-bit 33MHz PCI, DDR2 & DDR3, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 8 x SATA 3Gb/s connectors
- 2 x USB 2.0/1.1 (Support 4 ports)
- 1 x Parallel port header
- 1 x Serial port header
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x coaxial S/PDIF Out connector
- 1 x optical S/PDIF Out connector
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
- 8 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Audio:
- 8 Channels ALC889A Audio controller
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- Management:
- System voltage detection
- CPU/System temperature detection
- CPU/System/Power fan speed detection
- CPU overheating warning
- CPU/System/Power fan fail warning
- CPU fan speed control
|
Gigabyte GA-EP35C-DS3R Motherboard
- Model:
- Gigabyte GA-EP35C-DS3R Motherboard
- Processor Support:
- Support for an Intel ® Core 2 Extreme processor/ Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® processor
- Socket LGA 775
- FSB:
- 1600 (O.C.)/1333/1066/800 MHZ
- Chipset:
- Memory:
- 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
- Dual channel memory architecture
- Support for DDR3 1333/1066/800 MHz memory modules
- 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
- Support for DDR2 1200 (O.C.)/1066/800/667 MHz memory modules
- Dual channel memory architecture
- Expansion Slots:
- 1 x PCI-E x16
- 3 x PCI-E x1
- 3 x PCI 32bit/33MHz slots
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
- 2 x SATA 3 Gb/s connectors (GSATAII0, GSATAII1) supporting up to 2 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
- On-Board LAN:
- Realtek 8111B Gigabit LAN Controller
- BIOS:
- AWARD BIOS
- Supports Virtual DualBIOS
- 2 x 8 Mbit flash
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0
- Form Factor:
- ATX Form Factor,
305 x 244 mm
|
