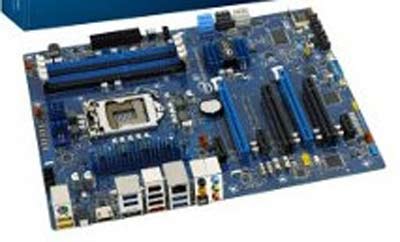

Intel DZ77BH Motherboard

• Storage:
  • 4 SATA 6.0 Gb/s
  • 3 SATA 3.0 Gb/s
  • 1 e-SATA 3.0 Gb/s

  • RAID Configuration

• Rear Panel I/O Ports:
  • Six SuperSpeed* USB 3.0 ports (4 external/2 header)
  • 10 USB 2.0 ports (four external (two hi-current/fast charging) / six internal)
  • Four Serial ATA 6.0 Gb/s ports
  • Three Serial ATA 3.0 Gb/s ports, one eSATA 3.0 Gb/s
  • Two IEEE 1394a ports/headers (one external/one header)
  • Consumer infrared receiver and emitter
  • Audio (back channel + front channel: 8+2
  • S/PDIF Out Connector: 1
  • # of PS2 Ports: 1


• BIOS:
  • ID String: BHZ7710H.86A with Intel Fast Boot Technology

• Special Features:
  • Consumer Infrared Headers: YES
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DZ77BH Motherboard


• Processor Support:
  • Intel ® Core i7 -K processors series and other processors in an LGA1155 socket
  • 2nd and 3rd Generation Intel ® Core i7 processor series in an LGA1155 socket
  • 2nd and 3rd Generation Intel ® Core i5 processor series in an LGA1155 socket
  • 2nd and 3rd Generation Intel ® Core i3 processor series in an LGA1155 socket

• Chipset:

  • Intel ® Z77 Express Chipset

  • Intel ® Rapid Storage Technology (Intel ® RST) for RAID 0, 1, 5, and 10

• Memory:
  • Four 240-pin DDR3 SDRAM dual in-line memory module (DIMM) sockets
  • Support for DDR3 1600/1333 /1066 MHz DIMMs
  • Support for up to 32 GB of system memory
  • Memory Channel: 2


• Expansion Slots:
  • Two PCI Express 3.0 x 16 discrete graphics card connector
  • Three PCI Express 2.0 x 1 connectors
  • Two Conventional PCI bus connectors

• On-Board Video:
  • Intel ® HD Graphics
  • HDMI* and DisplayPort*

  • Supports ATI CrossFireX* and NVIDIA SLI*

• On-Board Audio:
  • 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs and optical S/PDIF out port
  • Supports Dolby* Home Theatre V4

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ®  82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
