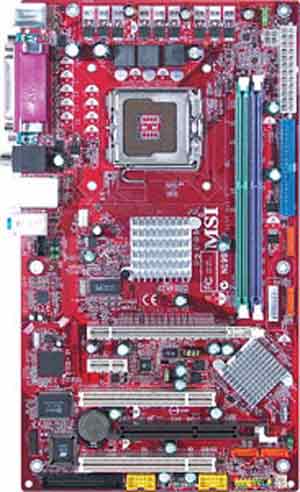

Microstar / MSI 915PL Neo-V

• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications

• Form Factor:
  • 12 in.(L) x 6.89 in.(W)
  • ATX Form Factor

MSI 915PL Neo-V Specifications

• Model:
  • MSI 915PL Neo-V

• Processor Support:
  • Supports Intel Pentium 4 / Celeron D processors in LGA775 package.
  • Supports up to Pentium 4 5xx, 6xx (EM64T) and Celeron D 3xx sequence processor.
  • Supports Intel 04B and 04A processors
  • Supoprts Intel Hyper-Threading Technology
  • Supports Intel new technology "EIST"

• FSB:
  • Support 533/800MHz

• Chipset:
  • Intel ® 915PL Chipset
  • Intel ® ICH6 Chipset

• Memory:
  • Supports two unbuffered DIMM of DDR SDRAM
  • Supports up to 2GB memory size without ECC
  • Supports dual channel DDR333/DDR400 MHz

• Expansion Slots:
  • One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant.)
  • One PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant.)
  • One AGR (Advanced Graphics Riser) slot for compatible AGP VGA card.
  • Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)

• On-Board Audio:
  • AC97 link controller integrated in Intel ICH6 chipset
  • 6-channel audio codec ADI AD 1888

• On-Board LAN:
  • Broadcom BCM4401KFB
  • Integrated Fast Ethernet MAC and PH in one chip
  • Supports 10Mb/s and 100Mb/s
