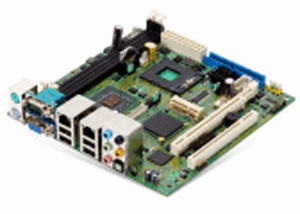

MSI
Fuzzy GM965
Motherboard
Intel Core 2 Duo/Core Duo/Celeron M CPU in Socket P, Intel GM965 chipset, 1 x PCI-E 16x, 1 Mini PCI, 1 PCI, 1 CF, DDR2 DIMM, Dual LAN, USB, IDE, SATA2, SPDIF, Audio, Video, S-VIDEO, Mini-ITX Form Factor |
|
- Internal I/O Interface:
- 2 USB 2.0 pinheaders
- 1 parallel port connector
- 1 SPDIF connector
- 1 LVDS connector
- 1 TV-out co1 digital I/O connector (16GPIO)
- 1 serial port connector
- 1 front panel connector
- 1 amplifier connector (4-pin)
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 Mouse
- 1 serial port
- 1 VGA
- 4 x USB 2.0 Ports
- 2 x RJ 45 Port
- Audio I/O Jacks
- Video:
- Intel GMA X3100 3D Graphic Engine
- Shared system memory up to 256MB
- Form Factor:
|
MSI
Fuzzy GM965
Motherboard
- Model:
- MSI
Fuzzy GM965
Motherboard
- Processor Support:
- Intel Core 2 Duo/Core Duo/Celeron M CPU in Socket P
- Supports 3-pin CPU fan pin-header with Fan Speed Control
- Supports Intel Dual Core Technology to 533/667/800MHz and up
- FSB:
- Chipset:
- Memory:
- DDR2 533/667 SDRAM (4GB Max)
- 2 DDR2 DIMM slots (240pin / 1.8V)
- Expansion Slots:
- 1 PCI Express x16 slot
- 1 Mini PCI-E slot
- 1 PCI 32-bit/33MHz slot
- 1 CF socket
- On-Board LAN:
- Supports 2 Gb Ethernet by Intel 82573L & 82566DC
- Storage:
- 1 IDE port by ICH8M
- Supports Ultra DMA 66/100 mode
- Supports PIO, Bus Master operation mode
- SATA II ports by ICH8M
- Supports two SATA II devices
- Supports storage and data transfers at up to 300MB/s
- Audio:
- HDA Codec by Realtek ALC888 7.1 channel
- Compliant with Azalia 1.0 specs
- 6 watt amplifier
- BIOS:
|
