• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 1 VGA port
  • 1 TV-out header
  • 1 HDMI port
  • 2 IEEE 1394 ports (rear x 1 / front x 1 )
  • 4 x USB 2.0 Ports
  • 1 Audio header (Rear/central/side ourtput)
  • 1 x RJ 45 Port
  • 1 Audio jack (5-in-1), coaxial/fiber SPDIF out


• Firewire:
  • Supports two IEEE1394 ports, transfer rate is up to 400Mbps
  • Controlled by VIA VT6308 chipset


• Audio:
  • 7.1 channel audio codec RealTek ALC883
  • Flexible 8-channel audio with jack sensing
  • Compliant with Azalia 1.0 spec


• Form Factor:
  • Micro-ATX Form Factor 9.61 in (L) x 8.2 in(W)

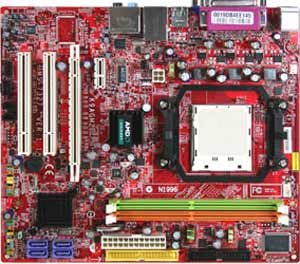

MSI K9AGM2-FIH Motherboard

• Model:
  • MSI K9AGM2-FIH Motherboard

• Processor Support:
  • Supports 64-bit AMD® Sempron, Athlon 64 /Athlon 64 X2 processor (Socket AM2)
  • Supports Athlon 64 CPU: 3000+, 3200+, 3500+, 3800+, and 4000+
  • Supports Athlon 64FX CPU: FX-60 and FX-62
  • Supports Athlon 64 X2 CPU: 3800+, 4000+, 4200, 4400+, 4600+, 4800+, 5000+, 5200+


• Chipset:
  • AMD ® 690G

• Memory:
  • Supports dual channel DDR2 400/533/667/800, using four 240-pin DDR2 DIMMs.
  • Supports the memory size up to 4GB
  • Supports 1.8v DDR2 SDRAM DIMM


• Expansion Slots:
  • 1x PCI Express X16 slot (supports PCI Express Bus specification v1.0a compliant)
  • 1x PCI Express x1
  • 2x PCI slots (support 3.3v/5v PCI bus interface).

• Video:
  • Radeon X1250 Graphic integrated shared up to 512MB


• On-Board LAN:
  • Supports 10Mb/s, 100Mb/s or 1000Mb/s
  • Realtek® 8111B


• Storage:
  • An IDE controller on the ATI SB600 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.
  • Can connect up to 2 IDE devices
  • SB600 supports 4 SATA II ports
  • Transfer rate is up to 300MB/s
  • Supports RAID 0, 1, 0+1


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
  • Supports boot from LAN, USB Device 1.1 & 2.0 and SATA HDD
