Microstar / MSI MS-7599

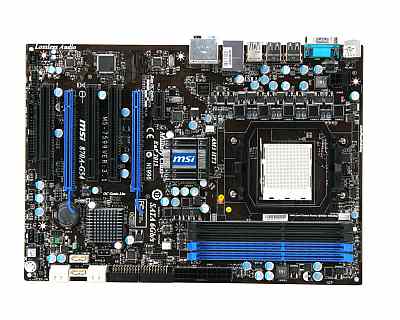

MSI 870A-G54 Motherboard MS-7599

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard/Mouse port
  • 1 x Optical SPDIF-out
  • 1 x Serial port
  • 6 x USB 2.0 ports
  • 2 x USB 3.0 ports (blue)
  • 1 x RJ45 LAN Jack
  • 1 x 6 in 1 audio jack
• Internal I/O Interface:
  • ATX 24-pin power connector
  • ATX 4-pin 12V CPU power connector
  • CPU x 1 / System x 2 FAN connectors
  • CD-in connector
  • Front panel audio connector
  • Front panel connector
  • Chassis intrusion switch connector
  • 3 x USB 2.0 connectors
  • 6 x Serial ATA III connectors
  • 1 x ATA133 HD connector
  • 1 x OC Dial button
  • 1 x OC Dial knob
  • Clear CMOS jumper
  • 1 x SPDIF-out connector
  • 1 x TPM module connector

Motherboard Specifications

• Model:
  • MSI 870A-G54 Motherboard (MS-7599)

• CPU:
  • 64bit AMD ® Phenom II CPU.
    Please refer to CPU Support for compatible CPU; the above description is for reference only.
• Chipset:
  • AMD ® 870 and SB850 Chipset

• Hyper Transport Bus:
  • HyperTransport 3.0 supporting speed up to 5200MT/s
• Memory:
  • Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600* (OC) DRAM, 16GB Max
• Expansion Slots:
  • 1 PCI Express x16 slot (PCI_E2) with x16 operation (PCI Express Bus SPEC V2.0 compliant)
  • 1 PCI Express x16 slot (PCI_E3) with x4 operation (PCI Express Bus SPEC V2.0 compliant)
  • 1 PCI Express x1 slot
  • 3 PCI slots, support 3.3V/ 5V PCI bus Interface.
• On-Board Audio:
  • Chipset integrated by Realtek ® ALC892
  • True Blu-ray Audio Support
  • Flexible 8-channel audio with jack sensing
  • Compliant with Azalia 1.0 Spec
• Storage:
  • On-Board IDE
    One IDE port by JMicron ® JMB368
    Supports Ultra DMA 66/100/133 mode
    Supports PIO, Bus Master operation mode
    Can connect up to two IDE devices
  • On-Board SATA
    6 SATA III (1~6) ports by AMD ® SB850
    Supports storage and data transfers at up to 6Gb/s
  • RAID Function
    SATA III 1~6 support RAID 0, 1, 5, 10 mode by AMD ® SB850
• On-Board LAN:
  • Realtek PCI-E GbLAN controller 8111DL
  • Integrated Fast Ethernet MAC and PHY in single chip
  • Supports 10Mb/s, 100Mb/s and 1000Mb/s
  • Compliance with PCI-Express Bus specification v1.0a
• Mounting:
  • 6 mounting holes
• Form Factor:
  • 12" W x  8.5" D
  • ATX Form Factor
