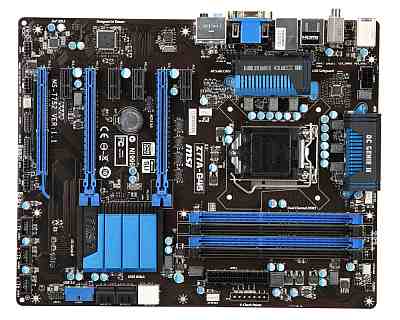

MSI Z77A-G45 Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/ mouse port
  • 1 x Clear CMOS button
  • 1 x Coaxial S/PDIF-out port
  • 1 x Optical S/PDIF-out port
  • 4 x USB 2.0 ports
  • 2 x USB 3.0 ports
  • 1 x RJ45 LAN Jack
  • 1 x 6 in 1 audio jack
  • 1 x HDMI ® port with max. resolution up to 1920x1200 @60Hz
  • 1 x DVI-D port with max. resolution up to 1920x1200 @60Hz
  • 1 x VGA port with max. resolution up to 2048x1536 @75Hz
    *HDMI, DVI-D & Graphics Card ports support dual-display function by any two output ports (HDMI+DVI,DVI+VGA or VGA+HDMI).

• Internal I/O Interface:
  • ATX 24-Pin power connector
  • 8-pin ATX 12V power connector
  • CPU x 1 / System x 4 FAN connectors
  • 1 x Clear CMOS jumper
  • 2 x Serial ATAII connectors
  • 4 x Serial ATAIII connectors
  • 3 x USB 2.0 connectors
  • 1 x USB 3.0 connector
  • 1 x Serial port connector
  • 1 x TPM Module connector
  • 1 x Front Panel Audio connector
  • 1 x Front Panel connector
  • 1 x Chassis Intrusion connector
  • 1 x Voice Genie connector (optional)
  • 1 x MultiConnect Panel connector (optional)
  • 1 x V-Check Points Set (optional)
• USB 3.0:
  • 2 x USB 3.0 rear IO ports by Intel ® Z77
  • 1 x USB 3.0 onboard connector by Intel ® Z77

Motherboard Specifications

• Model:
  • MSI Z77A-G45 Motherboard

• CPU:
  • Supports 3rd Gen Intel ® Core i7 / Core i5 / Core i3 / Pentium ® / Celeron ® processors for LGA 1155 socket
    Please refer to CPU Support for compatible CPU; the above description is for reference only.
• Chipset:
  • Intel ® Z77 Chipset

• FSB:
  • 100MHZ
• Memory:
  • Support four DDR3 DIMMs 2667*(OC)/ 2400*(OC)/ 2133*(OC)/ 1866*(OC)/1600/ 1333/ 1066 DRAM (32GB Max)
  • Supports Dual-Channel mode
• Expansion Slots:
  • 2 x PCIe 3.0 x16 slots
  • 1 x PCIe 2.0 x16 slot
  •  PCI_E7 supports up to PCIe 2.0 x4 speed
  • 4 x PCIe 2.0 x1 slots
• On-Board Audio:
  • Chipset integrated by Realtek ® ALC892
  • Flexible 8-channel audio with jack sensing
  • Compliant with Azalia 1.0 Spec
• On-Board Video:
  • VGA Port
  • DVI-D Port
  • HDMI Port
• VGA, DVI ports can only work with CPUs with GPUs core inside

• Storage:
  • SATAII controller integrated in Intel ® Z77 chipset
  • Up to 3Gb/s transfer speed.
  • Supports four SATAII ports (SATA3~6) by Z77
  • SATAIII controller integrated in Intel ® Z77 chipset
  • Up to 6Gb/s transfer speed.
  • Supports two SATAIII ports (SATA1~2) by Z77
  • RAID
    SATA1~6 support Intel ® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel ® Z77
• On-Board LAN:
  • Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek ® 8111E
• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
• Mounting:
  • 9 mounting holes.
• Form Factor:
  • 30.5cm(L) x 24.5cm(W)  (12 Inch x 9.6 Inch)
  • ATX Form Factor
