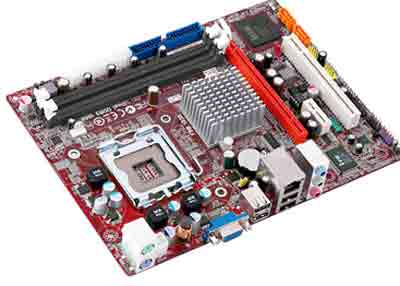

PC Chips P49G (V1.0) Motherboard

• Storage:
  • Support by Intel ® ICH7
  • 2 x Ultra DMA100/66 devices
  • 2 x Serial ATAII 3.0Gb/s devices

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x VGA port
  • 4 x USB 2.0 Ports
  • 1 x Audio I/O (Line-in, Line-out and Mic-in)
  • 1 x RJ 45 Port
  • 1 x PS/2 mouse

• Internal I/O Interface:
  • 24-pin ATX Power Supply connector
  • 2 x USB 2.0 header support additional 4 USB2.0 ports
  • 1 x IDE connector
  • 1 x Front panel switch/LED header
  • 1 x CPU FAN header
  • 1 x COM header
  • 1 x SPDIF out header
  • 4-pin ATX 12V power supply connecto
  • 2 x Serial ATA connectors
  • 1 x CLR CMOS header
  • 1 x Front panel audio header
  • 1 x Speaker header
  • 1 x LPT header
  • 1 x Chassis intrusion header

Motherboard Specifications

• Model:
  • PC Chips P49G (V1.0) Motherboard


• Processor Support:
  • LGA775 socket for latest Intel Core 2 Quad*/Core 2 Duo / Pentium Dual-core (E21xx series)/Celeron 4xx processors
  • LGA775 socket for latest Intel ® 45nm Multi-Core processors
  • supports 65W Core 2 Quad CPU

• Chipset:
  • Intel G41 & ICH7

• FSB:
  • 1333/1066/800 MHz

• Memory:
  • Dual-channel DDR3 memory architecture
  • 2 x 240-pin DDR3 DIMM socket support up to 8GB
  • Support DDR3 1333/1066/800 DDR3 SDRAM*
  • Due to the chipset spec, the motherboard runs at DDR3 1066/800 MHz memory speed

• Expansion Slots:
  • 1 x PCI Express x 16 slot
  • 1 x PCI Express x 1 slot
  • 1 x PCI slot

• On-Board Video:
  • Integrated Intel Graphics Media Accelerator X4500(GMAX4500)

• On-Board Audio:
  • VIA VT1705 6-channel High Definition audio Codec

• On-Board LAN:
  • RealTek 8103EL 10/100 Fast Ethernet NIC (Gigabit LAN optional)

• Form Factor/Dimensions:
  • Micro ATX Form Factor, 225x170mm
• BIOS:
  • AMI BIOS with 8Mb SPI Flash ROM
