• Form Factor:
  • ATX (12.00 inches by 9.60 inches)


Intel  Specifications

• Model:

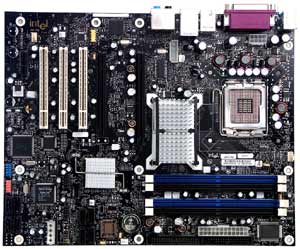

  • Intel D955XBK

• Processor Support:
  • Support for Intel ® Pentium ® Processor Extreme Edition (in an LGA775 socket with a 800 MHz system bus)
  • Support for Intel ® Pentium ® 4 Processor Extreme Edition supporting Hyper-Threading Technology  (in an LGA775 socket with a 1066 MHz system bus)
  • Support for Intel ® Pentium ® 4 Processor supporting Hyper-Threading Technology  (in an LGA775 socket with an 800 MHz system bus)
  • Support for Intel ® Pentium ® D Processor (in an LGA775 socket with an 800 MHz system bus)


• Chipset:
  • Intel 955X chipset

• Memory:
  • DDR2

• Expansion Slots:
  • Three PCI Conventional* bus add-in card connectors (SMBus routed to PCI Conventional bus connector 2)
  • One PCI Express x16 bus add-in card connector
  • One Secondary PCI Express x16/x4 bus add-in card connector
  • One PCI Express x1 bus add-in card connectors

• On-Board Audio:
  • Intel ® High Definition Audio

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ® 82573E/82573V/82574V Gigabit Ethernet Controller


• Rear Panel I/O Ports:
  • Eight USB 2.0 ports
  • One serial port
  • One parallel port Four Serial ATA interfaces with RAID support
  • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One diskette drive interface PS/2* keyboard and mouse ports
