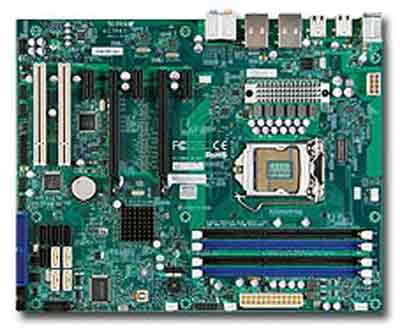

Supermicro C7P67 Motherboard
- Storage:
- Intel P67, Marvell 88SE9128
- Rear Panel I/O Ports:
- Super I/O: Nuvoton NCT6776F
- 4x SATA 2.0 ports w/ RAID 0, 1, 5, 10
- 4x SATA 3.0 ports w/ RAID 0, 1
- SATA 3.0 6Gbps / SATA 2.0 3Gbps
- 2x RJ45 LAN ports
- 2x USB 3.0 ports
- 12x USB 2.0 ports (8 rear, 4 ports via 2 internal
headers)
- Line-in / Line-out / Microphone Ports; optical S/PDIF
port
- DOM power connector support
- 2x IEEE 1394a header (T1 1394a)
- 2x Fast UART 16550 serial port
- PS/2 keyboard/mouse shared connector
- TPM 1.2 header
- Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V
Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 6-Phase-switching voltage regulator with auto-sense
from 0.8375V-1.60V
- FAN: Total of 4 fan headers supporting up to 4 fans;
four 4-pin fan headers
- 4x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Temperature: Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- +5V Standby alert LED
- Chassis intrusion detection
- Chassis intrusion header
|
Motherboard Specifications
- Model:
- Supermicro C7P67 Motherboard
- Processor Support:
- Socket H2 (LGA 1155)
- Intel ® 2nd and 3rd Generation Core i7/i5/i3, Pentium,
Celeron processors supported
- Chipset:
- Intel ® P67 Express chipset
- Memory:
- 4x 240-pin DDR3 DIMM sockets
- Supports up to 32 GB DDR3 non-ECC Un-Buffered memory
(UDIMM)
- 1333/1066MHz; 2133/1867/1600 (O.C.)
- Support non-ECC DDR3 UDIMM only
- Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- 8GB, 4GB, 2GB, 1GB
- 1.5 V
- Expansion Slots:
- 1x (x16) PCI-E 2.0 (x8 if slot 4 is used)
- 1x (x8) PCI-E 2.0 (in x16)
- 3x (x1) PCI-E 2.0
- On-Board Audio:
- REALTEK ALC889 7.1 HD Audio with optical S/PDIF
- On-Board LAN:
- Realtek RTL8111E Gigabit Ethernet LAN,
- 2x Gigabit LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45
output
- Form
Factor/Dimensions:
- ATX
- 12" x 9.6" (30.5cm x 24.4cm)
- Manageability:
- SuperDoctor ® III
- Power Configurations: ACPI / ACPM Power Management
- Main Switch Override Mechanism
- Wake-On-LAN (WOL) header
- Keyboard Wakeup from Soft-Off
- Power-on mode for AC power recovery
- BIOS:
- 32Mb SPI Flash EEPROM with AMI UEFI BIOS
- Features: Plug and Play (PnP)
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- RTC (Real time Clock) Wakeup
- 3TB HDD Support
|
