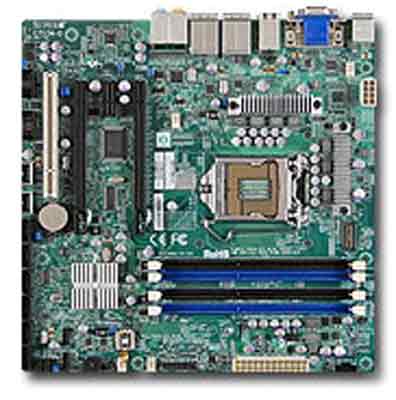

Supermicro C7SIM-Q Motherboard

• Storage:

  • SATA (3 Gbps) controller built-in
  • RAID 0, 1, 5, 10 support (Windows Only)
  • RAID 0, 1, 10 support (Linux)

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83627DHG-P chip
  • Six Serial ATA ports (3Gbps performance)
  • 2x RJ45 LAN port
  • 14x USB 2.0/1.1 compliant (8x rear + 2x headers + 2 "TYPE-A" connectors)
  • Line-in / Line-out / Microphone Ports
  • PS/2 keyboard and mouse ports
  • 2x Serial Headers
  • TPM: Infineon SLB9635TT


• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
  • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio (Only available if CPU is supported)
  • FAN: Total of four 4-pin fan headers
  • 4 x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on / off control
  • Support 3-pin PWM fans (without speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) Support
  • PECI 2.0
  • CPU / System Overheat LED
  • Standby alert LED
  • Chassis intrusion Detection
  • Chassis intrusion Header
  • TPM 1.2
  • RoHS
  • Environmental Spec.: Operating Temperature: 0 ° to 55 °C
  • Non-operating Temperature: -40 ° to 85 °C
  • Operating Relative Humidity: 15% to 95% (non-condensing)
  • Non-operating Relative Humidity: 15 to 90% (non-condensing)


Motherboard Specifications

• Model:
  • Supermicro C7SIM-Q Motherboard


• Processor Support:

  • LGA 1156 Socket
  • Intel ® Core i7
  • Intel ® Core i5
  • Intel ® Core i3
  • Intel ® Pentium ® G6950

• Chipset:
  • Intel ® Q57 Express

• Memory:

  • Four 240-pin DIMM sockets
  • Supports up to 16 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory
  • DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
  • 1 GB, 2 GB, 4 GB
  • 1.5V only

• Expansion Slots:

  • 1 (x16) PCI-E 2.0 slot
  • 1 (x4) (using x16) PCI-E 2.0 slot
  • 1 (x1) PCI-E 2.0 slot
  • 1x 32-bit 33MHz PCI (5V) slots

• On-Board Video:
  • On board graphics(when Dual Core CPU apply)

• On-Board Audio:
  • RealTek ALC889 High Definition 8 Channel Audio with S/PDIF header

• On-Board LAN:

  • Intel ® 82578DM + 82574L Gigabit Ethernet
  • Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output

• Form Factor/Dimensions:
  • Micro ATX
  • 9.6" x 9.6 ", (24.4cm x 24.4cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI/APM Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode control for AC power recovery
• Internal / External modem remote ring-on
• Suspend to RAM (STR)
• BIOS:
• 64Mb SPI Flash EEPROM with AMI BIOS
• Features: Plug and Play (PnP)
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
