Supermicro
PDSML-LN2+
Motherboard

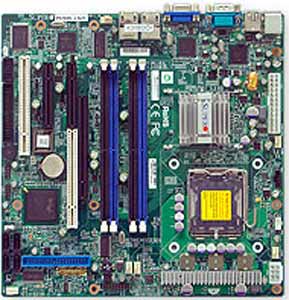

Single LGA775 ZIF Sockets, Supports an Quad-Core Intel ® Xeon ® 3200, Dual-Core Intel ® Xeon ® 3000, Quad-Core Intel ® Core2 Extreme, Intel ® Core 2 Quad, Core2 Duo, Pentium ® 4, Pentium ® D, Celeron ® D, Intel 3000 chipset, 1 (x8) PCI-E or 1x 32-bit 33MHz PCI, 1 (x4) PCI-E, 1x PCI 32-bit 33MHz, DDR2 DIMM Up to 8 GB, Dual LAN, USB, IDE, SATA, RAID, Video, Micro ATX Form Factor
|
|
- Internal I/O Interface:
- 1 Floppy controller; 1.44 MB, 2.88 MB
- 4x USB internal headers
- 1x Serial Header
- Four SATA hard drives supported
- Rear Panel I/O Ports:
- 2 RJ45 LAN ports
- 1x VGA port
- 2x USB rear ports (6 USB 2.0 Compliant / 1.1 Compliant)
- 1 Fast UART 16550 serial port
- Stacked PS/2 keyboard and mouse ports
- Manageability:
- ACPI/APM Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
- Power-on mode control for AC power loss recovery
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Internal/External modem remote ring-on
- Suspend to RAM (STR)
- Monitors for CPU Cores Cores +1.8V, +3.3V, +5V, ±12V, +5V Standby
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Total of six 4-pin fan headers
- Status monitor with firmware/software speed control
- 6x fans with tachometer status monitoring
- Support 3-pin PWM fans (with speed control)
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan conn.
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- CPU / System Overheat LED
- Standby alert LED
- Thermal Monitor 2 (TM2) Support
- Chassis intrusion detection, Chassis intrusion header
- Optional IPMI (Intelligent Platform Management Interface) 2.0
- Super Doctor III, Watch Dog, NMI, W83793 H/W Monitor
|
Supermicro
PDSML-LN2+
Specifications
- Model:
- Supermicro
PDSML-LN2+
Motherboard
- Processor Support:
- Single LGA775 ZIF Socket
- Supports a Quad-Core Intel ® Xeon ® 3200 Series processor
- Supports a Dual-Core Intel ® Xeon ® 3000 Series processor
- Supports a Quad-Core Intel ® Core2 Extreme Series processor
- Supports an Intel ® Core 2 Quad processor
- Supports an Intel ® Core 2 Duo processor
-
Supports an Intel ® Pentium ® D (Dual Core) processor
- Supports an Intel ® Pentium ® Extreme Edition processor
- Supports an Intel ® Pentium ® 4 processor
- Supports an Intel ® Celeron ® D
- 1066 / 800 / 533 MHz system bus
- Chipset:
- Intel 3000 (Mukilteo-2) chipset
- ICH7R + PXH-V + Intel® 82573V + Intel® 82573L
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 8 GB of unbuffered ECC / non-ECC DDR2 667/533MHz memory (Dual Channel)
- DDR2 667/533MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
- 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only
- Expansion Slots:
- 1 (x8) PCI-Express Slot OR
- 1x 32-bit 33MHz PCI Slot
- 1 (x4) PCI-e (using x8) slot
- 1x 32-bit 33MHz PCI (5V) slot
- On-Board LAN:
- 1x Intel® 82573V Gigabit PCI-Express Ethernet
- 1x Intel® 82573L Gigabit PCI-Express Ethernet
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Storage:
- Intel ® ICH7R SATA (3Gbps) controller built-in
- Four SATA hard drives supported
- RAID 0, 1, 5, 10 support (Windows Only)
- One EIDE channel supports up to two UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- Video:
- IPMI:
- 1U support for Intelligent Platform Management Interface v.2.0
- (Optional: AOC-1UIPMI-B )
- BIOS:
- 8Mb Flash EEPROM with PhoenixBIOS ®
- Plug and Play (PnP)
- ACPI 1.0, PCI 2.2, DMI 2.3
- USB Keyboard support
- SMBIOS 2.3
- Form Factor:
- MicroATX (uATX)
- 9.6" width x 9.6 " length , (24.4cm x 24.4cm), 6 layers
|
