Supermicro

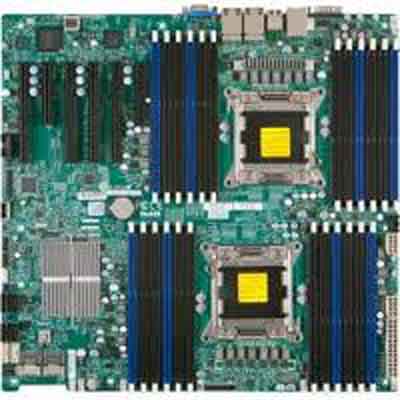

X9DR3-LN4F+ Motherboard
- Storage:
- SATA3 (6Gbps) and SATA2 (3Gbps).
- RAID 0, 1, 5, 10 support
- SAS: SAS from C606
- RAID 0, 1, 10 support
- IPMI: Support for Intelligent Platform Management
Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN
support
- Nuvoton WPCM450 BMC
- Rear Panel I/O Ports:
- SATA: 2x SATA 3.0 ports (6Gbps)
- 4x SATA 2.0 ports (3Gbps)
- SAS: 8x SAS ports from C606
- 4x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
- 9x USB 2.0 ports total (4x rear + 4x via header + 1x
Type A)
- 1x VGA port
- 2x Fast UART 16550 ports: 1 rear and 1 header
- 1 DOM (Disk on Module) power connector
- Hardware Monitoring:
- Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V,
+3.3V Standby, +5V Standby, VBAT, Memory Voltages.
- FAN: 8x 4-pin fan headers (up to 8 fans)
- 8x fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
- Temperature: Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x Fan Connectors
- Thermal Monitor 2 (TM2) support
- PECI
- LED: CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
- Chassis intrusion detection
- Chassis intrusion header
- RoHS, Halogen Free
|
Motherboard Specifications
- Model:
- Supermicro X9DR3-LN4F+ Motherboard
- Processor Support:
- Intel ® Xeon ® processor E5-2600 (up to 135W TDP **)
- Dual Socket R (LGA 2011)
- Up to 20MB
- Memory:
- 24x 240-pin DDR3 DIMM sockets
- Supports up to 768 GB DDR3 ECC Registered memory
(RDIMM) in 24 DIMM sockets
- Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered
memory (UDIMM) in 24 DIMM sockets
- Memory Type: 1600/1333/1066/800MHz ECC DDR3 SDRAM
72-bit, 240-pin gold-plated DIMMs
- Support ECC and non-ECC UDIMMs
- 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
- Memory Voltage: 1.5 V, 1.35 V
- Error Detection: Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Expansion Slots:
- 4 (x16) PCI-E 3.0 slots
- 1 (x8) PCI-E 3.0 slot
- 1 (x4) PCI-E 3.0 (in x8) slot
- On-Board LAN:
- Intel ® i350 Quad Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45
output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
- Form
Factor/Dimensions:
- Enhanced Extended ATX
- 13.68" x 13" (34.7cm x 33cm)
- Manageability:
- Watch Dog
- NMIOptional IPMI 1.5 / 2.0
- Power Configuratuion: ACPI / APM Power Management
- Power-on mode for AC power recovery
- BIOS:
- 128Mb SPI Flash EEPROM with AMI BIOS
- Feature: Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI
|
