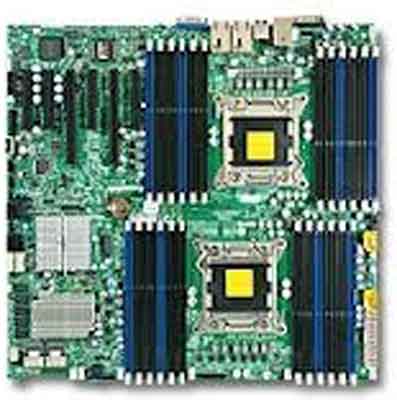

Supermicro X9DRE-TF Motherboard

• Storage:
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10

  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
  • IPMI: Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC

• Rear Panel I/O Ports:
  • Nuvoton W83527HG
  • 2x SATA 3.0 ports (6Gbps)
  • 2x SATA 3.0 ports (6Gbps)
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 8x USB 2.0 ports total (4x rear + 2x via header + 2x Type A)
  • 1x VGA port
  • PS/2 Keyboard/Mouse port
  • 2x Fast UART 16550 ports: 1 rear and 1 header
  • 1 DOM (Disk on Module) power connector

• Hardware Monitoring:
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5 Phase-switching voltage regulator
  • FAN: 8x 4-pin fan headers (up to 8 fans)
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • FAN: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • LED: CPU / System Overheat LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support

Motherboard Specifications

• Model:
  • Supermicro X9DRE-TF Motherboard


• Processor Support:
  • Intel ® Xeon ® processor E5-2600 (up to 135W TDP **)
  • Dual Socket R (LGA 2011)
  • Up to 20MB

• Chipset:
  • Intel ® C602J chipset

• FSB:
  • QPI up to 8 GT/s

• Memory:
  • 24x 240-pin DDR3 DIMM sockets
  • Supports up to 768 GB DDR3 ECC Registered memory (RDIMM) in 24 DIMM sockets3
  • Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) in 24 DIMM sockets
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • Support ECC and non-ECC UDIMMs
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
  • Memory Voltage: 1.5 V, 1.35 V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:
  • 2 (x16) PCI-E 3.0 slots
  • 4 (x8) PCI-E 3.0 slots

• On-Board Video:
  • G200 (Nuvoton WPCM450 BMC with graphic controller)

• On-Board LAN:
  • Intel ® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • E-ATX
  • 13.68" x 13" (34.7cm x 33cm)
• Manageability:
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Watch Dog
  • NMI
  • Optional IPMI 1.5 / 2.0
  • Power Configuration: ACPI / APM Power Management
  • Main Switch Override Mechanism
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
• BIOS:
  • 128Mb SPI Flash EEPROM with AMI BIOS
  • Features: Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
