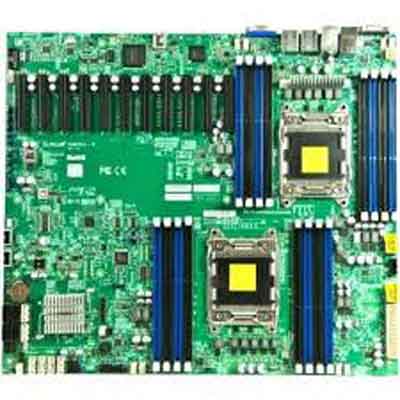

Supermicro X9RX+-F Motherboard

• Storage:

  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC

• Rear Panel I/O Ports:

  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 10x USB 2.0 ports total (4x rear + 4x via header + 2x Type A)
  • 1x VGA port
  • Serial Port / Header: 2x Fast UART 16550 ports (1 rear + 1 header)
  • 1x DOM (Disk on Module) power connector

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
  • FAN: 6x 4-pin fan headers
  • 6x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
  • LED: CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS
  • Dual cooling zones
  • Operating Temperature Range: 10 °C - 35 °C (50 °F - 95 °F)


Motherboard Specifications

• Model:
  • Supermicro X9RX+-F Motherboard


• Processor Support:

  • Intel ® Xeon ® processor E5-2600 (up to 135W TDP **)
  • Dual Socket R (LGA 2011)
  • Up to 20MB

• Chipset:
  • Intel ® C602 chipset

• FSB:
  • QPI up to 8 GT/s

• Memory:

  • 16x 240-pin DDR3 DIMM sockets
  • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
  • Memory Type: 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • Support ECC and non-ECC UDIMMs
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
  • Memory Voltage: 1.5 V, 1.35 V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 10 PCI-E 3.0 x8 slots
  • 1 PCI-E 2.0 x4 (in x8) slot

• On-Board Video:
  • Matrox G200eW

• On-Board LAN:

  • Intel ® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • Proprietary
  • 15.2" x 13.2" (38.6cm x 33.5cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• NMI
• IPMI 1.5 / 2.0
• Power Configuration: ACPI / APM Power Management
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery
• BIOS:
  • 128Mb SPI Flash EEPROM with AMI BIOS

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards,Revision M  chassis is recommended. Please talk to your sales representative for details.
