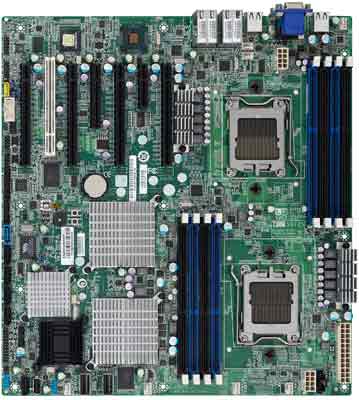

TYAN S8225 (S8225AGM4NRF) Motherboard

• Storage:
  • (6) SATA
  • AMD SP5100
  • 3.0 Gb/s
  • RAID 0/1/10/5 (Promise Integrated Software RAID)

• Rear Panel I/O Ports:
  • (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A onboard)
  • (2) COM ports (1 at rear, 1 via cable)
  • (1) D-Sub 15-pin VGA port
  • AUDIO: (1) 2x5-pin front panel audio header / (1) 2x6-pin rear audio jack header
  • RJ-45: (4) GbE ports
  • Firewire: (2) 2x5-pin headers

• Internal I/O Interface:
  • ATX12V / Universal 24-pin + 8-pin + 8-pin power connectors
  • (1) 2x12-pin SSI front panel header
  • (6) SATA-II connectors

• BIOS:
  • AMI / 4MB
  • Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring

• Special Features:
  • Firewire
  • Port Qty.: (2)
  • VIA VT6308

• Hardware Monitoring:
  • Winbond W83793G
  • Monitors voltage for CPU, memory, chipset & power supply
  • FAN: Total (7) 4-pin headers
  • Monitors temperature for CPU & system environment
  • Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator
  • Watchdog timer support

Motherboard Specifications

• Model:
  • TYAN S8225 (S8225AGM4NRF) Motherboard


• Processor Support:
  • AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon) / AMD 32nm 4-Core/6-Core/8-Core Opteron 4200 Series Processors (Valencia)
  • Socket Type/Qty.: C32 / (2)
  • Average CPU Power (ACP) wattage: Up to 75W

• Chipset:
  • AMD (2)SR5690 + SP5100
  • Super I/O: Winbond W83627

• FSB:
  • Up to 6.4 GT/s Hyper-Transport link support

• Memory:
  • (4)+(4) DIMM slots
  • U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
  • Up to 64GB RDIMM/ 32GB UDIMM
  • Memory Channel/Voltage: 2 Channels per CPU/1.5V or 1.3V


• Expansion Slots:
  • (4) PCI-E Gen.2 x16 slots / (1) PCI-E Gen.2 x8 slot (w/ x4 link) / (1) PCI-E Gen.2 x4 slot

• On-Board Video:
  • D-Sub 15-pin
  • Up to 1600x1200@60Hz
  • Aspeed AST2050

• On-Board Audio:
  • Realtek ALC262
  • High Definition Audio

• On-Board LAN:
  • Port Qty.: (4)
  • Intel 82574L / Intel 82576EB
  • Gigabit and Dual Ethernet LAN


• Form Factor/Dimensions:
  • EATX
  • 12"x13" (305x330mm)
• Manageability:
  • Onboard Aspeed AST2050
  • IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update
  • 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces

• Accessories:
  • (1) S8225 Motherboard
  • (1) User's manual / (1) Quick Ref. Guide
  • (1) TYAN installation CD
  • (1) I/O Shield
  • (6) SATA signal cables
