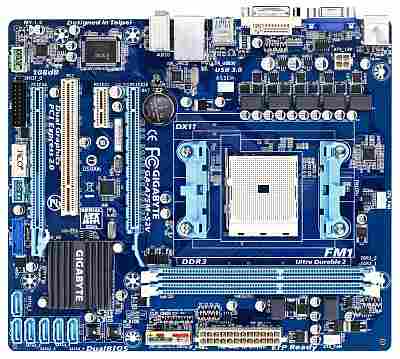

Gigabyte GA-A75M-S2V Motherboard

• Storage:
  • Chipset:
    6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
    Support for RAID 0, RAID 1, RAID 10, and JBOD

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 4 x USB 2.0/1.1 ports
  • 2 x USB 3.0/2.0 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x APU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 2.0/1.1 header
  • 1 x USB 3.0/2.0 header
  • 1 x serial port header
  • 1 x Trusted Platform Module (TPM) header
  • 1 x clearing CMOS jumper

• Hardware Monitoring:
  • System voltage detection
  • APU/System temperature detection
  • APU/System fan speed detection
  • APU overheating warning
  • APU/System fan fail warning
  • APU/System fan speed control (Note 6)

• I/O Controller:
  • iTE IT8720 chip

• Bundle Software:
  • Norton Internet Security (OEM version)

• Operating System:
  • Support for Microsoft ® Windows 8/7/Vista/XP

Motherboard Specifications

• Model:
  • Gigabyte GA-A75M-S2V Motherboard

• APU:
  • FM1 Socket:
  • AMD A series & E2 series processors
    (Please refer "CPU Support List" for more information.)
• Chipset:
  • AMD A75 chipset
• Memory:
  • 2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
  • Dual channel memory architecture
    Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
    (All PCI Express slots conform to the PCI Express 2.0 standard.)
  • 1 x PCI slot
• On-Board Video:
  • APU:
  • 1 x D-Sub port (Note 2)
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2) (Note 3)
    (All integrated graphics ports do not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.)
  • Support for AMD Dual Graphics technology
    Only A series APU support AMD Dual Graphics.

• On-Board Audio:
  • Realtek ALC889 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel (Note 4)
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
• BIOS:
  • 2 x 32 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune (Note 7)
  • Support for Smart Recovery
  • Support for Auto Green
  • Support for ON/OFF Charge
  • Support for 3TB+ Unlock
  • Support for Q-Share
• Form Factor:
  • Micro ATX Form Factor
  • 24.4cm x 21.0cm (9.6 Inch x 8.3 Inch)
