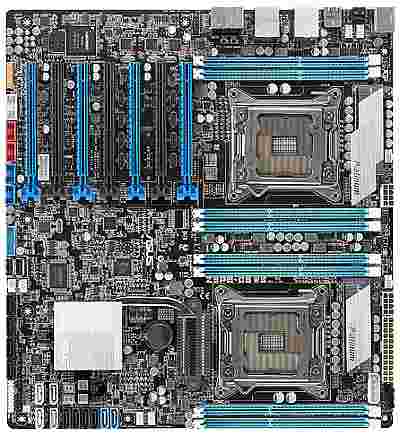

Asus Z9PE-D8 WS Motherboard

• Storage:
  Intel ® C602 chipset :

  • 2 x SATA 6Gb/s port(s), blue
  • 8 x SATA 3Gb/s port(s), black
  • Support Raid 0, 1, 5, 10
  Marvell ® PCIe 9230 controller :

  • 4 x SATA 6Gb/s port(s), gray
  • Support Raid 0, 1, 10

• Rear Panel I/O Ports:

  • 1 x PS/2 keyboard/mouse combo port(s)
  • 2 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 6 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 2 x Vertical USB 2.0 port(s)
  • 2 x COM port(s) connector(s)
  • 6 x SATA 6Gb/s connector(s)
  • 8 x SATA 3Gb/s connector(s)
  • 2 x IEEE 1394a connector(s)
  • 2 x CPU Fan connector(s) (4 -pin)
  • 6 x Chassis Fan connector(s) (4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 2 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin EZ_PLUG Power connector(s)
  • 1 x RAID key header(s)
  • 1 x ASMB6-iKVM connector(s)
  • 1 x VGA connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x AUX panel header(s)
  • 1 x SMBus header(s)
  • 1 x System panel(s) (Q-Connector)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x Clear CMOS jumper(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Motherboard Specifications

• Model:
  • Asus Z9PE-D8 WS Motherboard


• Processor Support:

  • Intel ® Socket 2011 Processors
  • Dual Intel ® Xeon ® processor E5-2600 product family
  • Supports Intel ® Turbo Boost Technology 2.0

• Chipset:
  • Intel ® C602

• Memory:

  • 8 x DIMM, Max. 64GB, DDR3 2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
  • Quad Channel Memory Architecture
  • * For Registered Memory, Max. 256GB DDR3 1600/1333/1066/800 MHz

• Expansion Slots:

  • 4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *1
  • 2 x PCIe 3.0/2.0 x16 *1
  • 1 x PCIe 3.0/2.0 x16 (x8 mode) *1

• On-Board Audio:

  • Realtek ® ALC898 8-Channel High Definition Audio CODEC
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
            Audio Feature :
  • - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  • - DTS Ultra PC II
  • - Optical S/PDIF out port(s) at back panel

• On-Board LAN:
  • Intel ® 82574L, 2 x Gigabit LAN Controller(s)

• Accessories:

  • User's manual
  • I/O Shield
  • 2 x COM port cable(s)
  • 8 x SATA 3Gb/s cable(s)
  • 6 x SATA 6Gb/s cable(s)
  • 1 x 3-Way SLI bridge(s)
  • 1 x 4-Way SLI bridge(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)
  • 1 x 2-port USB2.0 + 1394 bracket(s)

• Special Features:
  ASUS Digital Power Design :
  • - Industry leading Digital 7 +1 Phase Power Design
  • - Industry leading Digital 2 Phase DRAM Power Design
  ASUS Exclusive Features  :
  • - Front Panel USB 3.0 Support
  • - ASUS SSD Caching
  • ASUS Quiet Thermal Solution  :
  • - Stylish Fanless Design Heat-pipe solution
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 2
  • - ASUS MyLogo 2
  • - Multi-language BIOS
  • ASUS Q-Design :
  • - ASUS Q-Shield
  • - ASUS Q-Code
  • - ASUS Q-Slot
  • - ASUS Q-DIMM
  • - ASUS Q-Connector

• Form Factor:
  • EEB Form Factor
    12 inch x 13 inch ( 30.5 cm x 33 cm )
