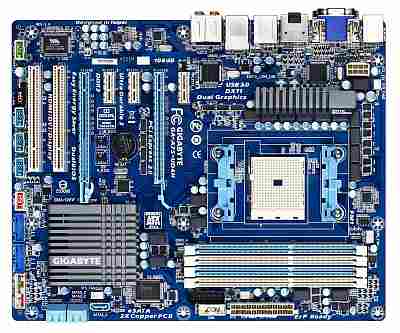

Gigabyte GA-A75-UD4H Motherboard

• Storage:
  • Chipset:
    5 x SATA 6Gb/s connectors supporting up to 5 SATA 6Gb/s devices
    1 x eSATA 6Gb/s port on the back panel supporting up to 1 SATA 6Gb/s device (Note 7)
    Support for RAID 0, RAID 1, RAID 10, and JBOD

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x optical S/PDIF Out connector
  • 2 x USB 2.0/1.1 ports
  • 4 x USB 3.0/2.0 ports
  • 1 x IEEE 1394a header
  • 1 x eSATA 6Gb/s port
  • 1 x RJ-45 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 5 x SATA 6Gb/s connectors
  • 1 x APU fan header
  • 2 x system fan headers
  • 1 x power fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 4 x USB 2.0/1.1 headers
  • 2 x USB 3.0/2.0 headers
  • 1 x IEEE 1394a header
  • 1 x serial port header
  • 1 x Trusted Platform Module (TPM) header
  • 1 x clearing CMOS jumper

• Hardware Monitoring:
  • System voltage detection
  • APU/System temperature detection
  • APU/System/Power fan speed detection
  • APU overheating warning
  • APU/System/Power fan fail warning
  • APU/System fan speed control (Note 8)

• I/O Controller:
  • iTE IT8720 chip

• Bundle Software:
  • Norton Internet Security (OEM version)

• Operating System:
  • Support for Microsoft ® Windows 8/7/Vista/XP

Motherboard Specifications

• Model:
  • Gigabyte GA-A75-UD4H Motherboard

• APU:
  • FM1 Socket:
  • AMD A series & E2 series processors
    (Please refer "CPU Support List" for more information
• Chipset:
  • AMD A75 chipset
• Memory:
  • 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory (Note 1)
  • Dual channel memory architecture
  • Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules (Note 2)
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 6)
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  • 3 x PCI Express x1 slots
    (All PCI Express slots conform to the PCI Express 2.0 standard.)
  • 2 x PCI slots
• On-Board Video:
  • APU:
  • 1 x D-Sub port (Note 3)
  • 1 x DVI-D port, supporting a maximum resolution of 2560x1600 (Note 3) (Note 4) (Note 5)
  • 1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3)
  • 1 x DisplayPort, supporting a maximum resolution of 2560x1600 (Note 3)
    (All integrated graphics ports do not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.)
  • Support for AMD Dual Graphics technology
    Only A series APU support AMD Dual Graphics.
  • Support for AMD CrossFireX technology

• On-Board Audio:
  • Realtek ALC889 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for Dolby ® Home Theater
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

• BIOS:
  • 2 x 32 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune (Note 9)
  • Support for Smart Recovery
  • Support for Auto Green
  • Support for ON/OFF Charge
  • Support for 3TB+ Unlock
  • Support for Q-Share
• Form Factor:
  • ATX Form Factor
  • 30.5cm x 24.4cm (12 Inch x 9.6 Inch)
