• Internal I/O Interface:
  • 2 x USB 2.0 connector supports additional 4 USB ports
  • CPU / Chassis Fan connectors
  • 4 x SATA connector
  • 1 x IDE connector
  • Chassis Intrusion
  • CD audio in
  • 24-pin EATX Power connector
  • 1 x S/PDIF out connector
  • Front panel audio connector
  • 4-pin ATX 12V Power connector
  • Game/MIDI connector
  • System panel connector

• BIOS:
  • 4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3

• Overclocking Features:
  • AI Overclocking (intelligent CPU frequency tuner)
  • ASUS CPU Lock Free Technology
  • ASUS Hyper Path2
  • SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment
  • Adjustable FSB/DDR ratio. Fixed PCI/PCI-E frequencies
  • ASUS C.P.R.(CPU Parameter Recall)

• Special Features:
  • CrashFree BIOS 2
  • ASUS EZ Flash
  • MyLogo
  • Q-Fan

• Manageability:
  • WOL by PME,WOR by PME, Chassis Intrusion,PXE

• Accessories:
  • Drivers
  • User's manual
  • 1 x Serial ATA cable
  • 1 x SATA power cable
  • 1 x UltraDMA 100/66 cable
  • 1 x FDD cable
  • 1 x I/O shield

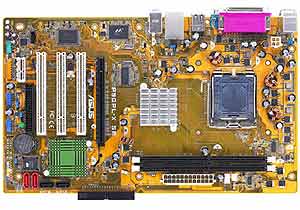

Motherboard Specifications

• Model:
  • Asus P5GPL-X SE

• Processor Support:
  • Socket 775 for Intel ® Pentium 4/Celeron CPU
  • Compatible with Intel ® 04B, 04A processors
  • Support Intel ® single-core 65nm intel ® Pentium ® 4/ Celeron ® processors
  • Intel ® Hyper-Threading Technology ready
  • Support Intel EM64T and EIST technology

• Chipset:
  • Intel 915PL

• FSB:
  • 800 / 533 MHz

• Memory:
  • 2 x 184-pin DIMM Sockets support max. 2GB DDR 400/333 non-ECC memory
  • Dual channel memory architecture
  • ASUS Hyper Path2

• Expansion Slots:
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x1
  • 3 x PCI

• On-Board Audio:
  • ADI 1986A High Definition Audio 6-channel CODEC S/PDIF out on back I/O port

• On-Board LAN:
  • Marvell 88E8001 Gigabit LAN Controller

• Storage:
  • 1 x UltraDMA 100/66/33
  • 4 x Serial ATA

• Rear Panel I/O Ports:
  • 1 x Parallel
  • 1 x Serial
  • 1 x S/PDIF Output
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x 6-Channel Audio I/O
  • 1 x RJ45
  • 4 x USB 2.0/1.1

• Form Factor:
  • ATX Form Factor
  • 12" x  7.2"
  • 30.5cm x 18.3cm
