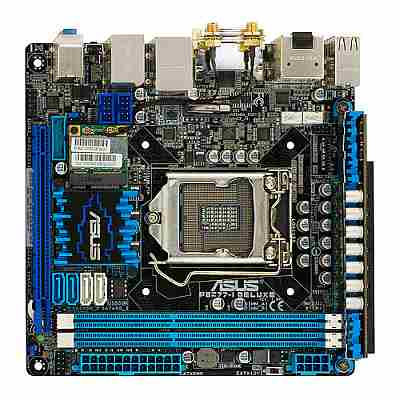

ASUS P8Z77-I DELUXE Motherboard

• Rear Panel I/O Ports:
  • 1 x DVI-I
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x eSATA 3Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0
  • 4 x USB 2.0
  • 1 x Optical S/PDIF out
  • 3 x Audio jack(s)
  • 1 x Clear CMOS button(s)
  • 2 x Wi-Fi antenna port(s)
  • 1 x USB BIOS Flashback Button(s)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 2 x SATA 6Gb/s connector(s)
  • 2 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 1 x Chassis Fan connector(s) (4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x System panel(s)
  • 1 x Chassis Intrusion connector(s)
  • 1 x MemOK! button(s)
  • 1 x TPU switch(es)
  • 1 x Clear CMOS jumper(s)

• USB Ports:
  • Intel ® Z77 chipset : *4
  • 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • Intel ® Z77 chipset :
  • 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
  • ASMedia ® USB 3.0 controller : *4
  • 2 x USB 3.0 port(s) (2 at back panel, blue)
• Overclocking Features:
  • Overclocking Protection :
  • ASUS C.P.R.(CPU Parameter Recall)
• Wireless Data Network:
  • Wi-Fi 802.11 a/b/g/n
  • Supports dual band frequency 2.4/5 GHz
• Bluetooth:
  • Bluetooth V4.0
  • Bluetooth V3.0+HS
• Accessories:
  • User's manual
  • ASUS Q-Shield
  • ASUS Q-Cable
  • 2 x SATA 3Gb/s cable(s)
  • 2 x SATA 6Gb/s cable(s)
  • 2 x Wi-Fi Ring Moving Antenna(s)

Motherboard Specifications

• Model:
  • ASUS P8Z77-I DELUXE Motherboard

• CPU:
  • Intel ® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium ®/Celeron ® Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
  • Supports Intel ® Turbo Boost Technology 2.0
    * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
• Chipset:
  • Intel ® Z77
• Memory:
  • 2 x DIMM, Max. 16GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz
  • Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel ® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Expansion Slots:
  • 1 x PCIe 3.0/2.0 x16 *1
• On-Board Audio:
  • Realtek ® ALC898 8-Channel High Definition Audio CODEC
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
    Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    DTS Ultra PC II
    DTS Connect
    Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports LucidLogix ® Virtu MVP Technology *2
• On-Board Video:
  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DVI/DisplayPort ports
  • Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
  • Supports Intel ® HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc:
  • Drivers
  • ASUS Utilities
  • ASUS Update
  • Anti-virus software (OEM version)
• Storage:
  • Intel ® Z77 chipset :
  • 2 x SATA 6Gb/s port(s), gray
  • 2 x SATA 3Gb/s port(s), blue
  • 2 x eSATA 3Gb/s port(s), red
  • Support Raid 0, 1, 5, 10
  • Supports Intel ® Smart Response Technology, Intel ® Rapid Start Technology, Intel ® Smart Connect Technology *3
• Special Features:
  • IASUS Dual Intelligent Processors 2 with DIGI+ VRM :
  • ASUS TPU :
    Auto Tuning
    TurboV
    GPU Boost
    TPU switch
  • ASUS EPU :
    EPU
  • ASUS Digital Power Design :
    Industry leading Digital 10 Phase Power Design
    (8 -phase for CPU, 2 -phase for iGPU)
  • ASUS Wi-Fi GO!
  • Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send *5
  • Wi-Fi GO! Remote for portable Smartphone/Tablet, supporting iOS & Android systems
  • Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
  • ASUS Exclusive Features :
    USB BIOS Flashback
    MemOK!
    AI Suite II
    Ai Charger+
    USB Charger+
    Anti-Surge
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    Network iControl
    USB 3.0 Boost
    Disk Unlocker
  • ASUS Quiet Thermal Solution :
    Stylish Fanless Design Heat-sink solution
    ASUS Fan Xpert
  • ASUS EZ DIY :
    ASUS O.C. Tuner
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 2
  • ASUS Q-Design :
    ASUS Q-Shield
    ASUS Q-Cable
• On-Board LAN:
  • Intel ® 82579V, 1 x Gigabit LAN Controller(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
    ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

• Form Factor:
  • Mini ITX Form Factor
  • 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
