Biostar  P4M80-M4

Biostar P4M80-M4

Part # 110257

Condition : New- Retail Box

| Warranty: 365 days

Brand : Biostar
Rate this product:

Loading...

Click "Notify" to get an alert when it's available

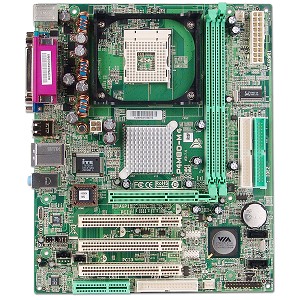

Biostar P4M80-M4 Socket 478 mATX motherboard with on-board audio, video and LAN. Supports 184 pin DDR memory. Motherboard. Specifications, price and availability

Biostar P4M80-M4 Motherboard

Socket 478 mATX motherboard with on-board audio, video and LAN. Supports 184 pin DDR memory.



Biostar P4M80-M4 Socket 478 mATX motherboard with on-board audio, video and LAN. Supports 184 pin DDR memory.

  • Storage:
    • Two (2) Serial ATA (SATA) controllers
    • Two (2) 33/66/100 IDE controllers
    • One (1) floppy controller
  • Rear Panel I/O Ports:
    • Two (2) PS/2 ports
    • One (1) 9-pin Serial port
    • One (1) Parallel port
    • One (1) 15-pin VGA port
    • Eight (8) USB ports (four on back and four via header)
    • One (1) RJ-45 ethernet jack
    • Mic in, Line in, Line out jacks
  • BIOS:
    • Award BIOS
    • Supports APM 1.2
    • Supports ACPI
    • Supports USB functions

Motherboard Specifications

  • Model:
    • Biostar P4M80-M4
  • Processor Support:
    • Supports Intel Pentium 4 Prescott, Celeron D and Celeron Socket 478 processors, up to 800 MHz Front Side Bus and Intel Hyper-Threading technology.
    • Does not support the Extreme Edition of P4.
  • Chipset:
    • VIA P4M800 + VT8237R+ chipset
  • FSB:
    • 400/533/800 MHz
  • Memory:
    • Supports up to 2 GB DDR memory (184 pin DDR 400/333)
  • Expansion Slots:
    • One 8x AGP slot
    • Three PCI slots
    • One CNR slot
  • On-Board Video:
    • S3 UniChrome integrated graphics with up to 64 MB shared memory
  • On-Board Audio:
    • Reaktek ALC655 6-Channel AC97 CODEC
  • On-Board LAN:
    • VIA VT6103L 10/100 LAN

  • Hardware Monitoring:
    • CPU/System Fan Speed
    • CPU Temperature
  • Form Factor:
    • mATX form factor
No details available

No reviews available
