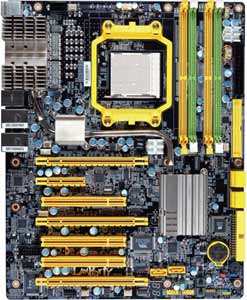

DFI LANPARTY UT 790FX-M2R/G Motherboard
Supports AMD Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 790FX chipset, 3 x PCIe x16 (run x16 and x8), 1 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Firewire, Audio, SPDIF, Crossfire Ready, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 connector for the Bernstein audio module
- 1 connector for 1 external IEEE 1394 port
- 1 connector for an external COM port
- 6 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 mini-DIN-6 PS/2 mouse port
- 1 mini-DIN-6 PS/2 keyboard port
- 1 IEEE 1394 port
- 1 set 7.1 channel Audio Jack (6 jacks)
- 6 x USB 2.0/1.1 ports
- 2 x RJ 45 Port
- Other Features :
- Support 2-way or 4-way CrossFire, run on x16/x16, or 3-way CrossFire, run on x16/x8/x8; Support PCI-Express 2.0
- ACPI and OS Directed Power Management
- ACPI STR (Suspend to RAM) function
- Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse
- Wake-On-LAN and Wake-On-Ring
- RTC timer to power-on the system
- Monitors CPU/system/chipset temperature
- Monitors 12V /5V/ 3.3V/ Vcore/ Vbat/ 5Vsb/ Vdimm/ Vchip voltages
- Monitors the speed of the cooling fans
- CPU Overheat Protection function monitors CPU temperature during system boot-up
- Firewire:
- VIA VT6307
- Supports two 100/200/400 Mb/sec ports
|
DFI LANPARTY UT 790FX-M2R/G Motherboard
- Model:
- DFI LANPARTY UT 790FX-M2R/G Motherboard
- Processor Support:
- Supports AMD Phenom/ Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
- Support HyperTransport
- Socket AM2
- FSB:
- Chipset:
- Memory:
- Four 240-pin DDR2 DIMM sockets
- Supports DDR2 667 and DDR2 800 DIMMs
- Supports dual channel (128-bit wide) memory interface
- Supports unbuffered non-ECC x8 and x16 DIMMs
- Supports up to 8GB system memory
- Expansion Slots:
- 3 PCI Express (Gen 2) x16 slots - 2-way or 4-way CrossFire at x16/x16/NC bandwidth - 3-way CrossFire at x16/x8/x8 bandwidth - 2-way CrossFire + Physics at x16/x8/x8 bandwidth
- 1 x PCIe x1
- 3 x PCI 32bit/33MHz slots
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- AMD SB600
- Supports up to 4 SATA devices - SATA speed up to 3Gb/s - RAID 0, RAID 1 and RAID 0+1
- Silicon Image SiI3132
- Supports up to 2 SATA devices - SATA speed up to 3Gb/s - RAID 0, RAID 1 and RAID 0+1
- Audio:
- Realtek ALC885 8-Channel HD Audio CODEC
- 8-channel audio output
- S/PDIF-in/out interface
- On-Board LAN:
- Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers
- Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
- BIOS:
- Award BIOS
- CMOS Reloaded
- CPU/DRAM overclocking
- CPU/DRAM/Chipset overvoltage
- 8Mbit flash memory
- Form Factor:
- ATX form factor
- 24.5cm x 30.5cm
|
