ECS 945GCT-M/1333 (V3.0)

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Serial port (COM1)
  • 1 x VGA port
  • 1 x Audio port (Line-in, Line-out, Mic-in)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Audio:
  • IDT 92HD202 8Ch-HD audio
  • 2/4/5.1
  • Compliant HD audio spec.

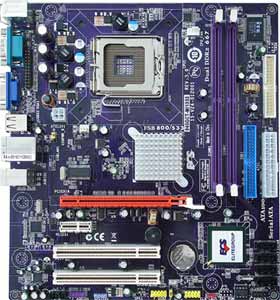

ECS 945GCT-M/1333 Motherboard

• Model:
  • ECS 945GCT-M/1333 Motherboard

• Processor Support:
  • Supports Intel® Core2 Duo / Pentium Dual Core / Pentium D / Pentium 4 / Celeron D Processors
  • Support Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • FSB 1333/1066/800/533 MHz


• Chipset:
  • Intel® 945GC

• Memory:
  • Dual-channel DDR2 memory architecture
  • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support 667/533/400 DDR2 SDRAM


• Expansion Slots:
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x1 slot
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x Ultra DMA 100/66
  • 4 x Serial ATAII 3.0Gb/s devices


• Video:
  • Integrated Intel® Graphics Media Accelerator 950 ( GMA950 )
  • Max Dynamic Video Memory up to 224MB(System Memory greater than or equal to 512MB)


• On-Board LAN:
  • Realtek RTL8101E 10/100 LAN (co-lay 8111B)


• BIOS:
  • AMI BIOS with 4Mb SPI ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • Micro-ATX Form Factor, 244mm x 220mm
