ECS GEFORCE6100SM-M2 (V1.0A)

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x VGA port
  • 1 x Serial port (COM1)
  • 1 x Parallel port (LPT1) (Optional)
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Video:
  • On Chip ( NVIDIA GeForce 6100/S-based. 2D/3D graphic engine)
  • Integrated DirectX 9 graphics processor
  • Share Memory: Maximum up to 256MB

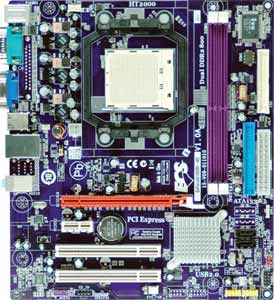

ECS GeForce6100SM-M2 Motherboard

• Model:
  • ECS GeForce6100SM-M2 Motherboard

• Processor Support:
  • Supports AMD Athlon 64 X2 Dual Core/ Athlon 64 / Sempron processor
  • Socket AM2


• FSB:
  • 2000 MTS


• Chipset:
  • NVIDIA GeForce 6100

• Memory:
  • Dual-channel DDR2 memory architecture
  • 2 x 240-pin DDR2 DIMM socket support up to 16GB
  • Support DDR2 800/667/533/400 DDR2 SDRAM


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCI Express x1 slot
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 2 x SATA ports 300
  • Support RAID0, RAID1


• Audio:
  • Realtek ALC662 6-channel audio
  • 2/4/5.1
  • Compliant with HD specification


• On-Board LAN:
  • Broadcom AC131 10/100 Lan Phy


• BIOS:
  • AMI BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • Micro-ATX Form Factor
  • 244mm x 214mm
