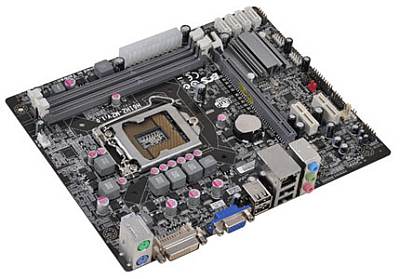

ECS H61H2-M2 (V1.0) Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard & PS/2 mouse connectors
  • 1 x D-sub(VGA)
  • 1 x HDMI Port
  • 1 x RJ45 LAN connector
  • 1 x Audio port (Line-in, Line-out, Mic-in)
  • 4 x USB 2.0 Ports
• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin 12V Connector
  • 1 x 4pin CPU_FAN connectors
  • 1 x 3-pin SYS_FAN connector
  • 1 x Speaker header
  • 1 x SPDIF out header
  • 1 x Clear CMOS header
  • 1 x Serial Header(COM)
  • 4 x SATA 3Gb/s connectors
  • 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
  • 1 x TPM header
  • 1 x Case open header
  • 1 x Front panel audio header
  • 1 x Front panel switch/LED header
• On-Board LAN:
  • Atheros AR8151-B 10/100/1000 Fast Ethernet Controller
  • Supports Wake-On-LAN
• Storage:
  •  Support by Intel ® H61
    4 x Serial ATA 3.0Gb/s devices
  • Supports NCQ, AHCI and "Hot Plug" functions
• OS Support:
  • Windows XP 32/64bit
  • Windows Vista 32/64bit
  • Windows 7 32/64bit
  • Windows 8 32/64bit
• Bundled Software:
  • ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
  • Free Bundle: Norton Internet Security ,CyberLink Media Suite, Muzee with trial version

Motherboard Specifications

• Model:
  • ECS H61H2-M2 (V1.0) Motherboard

• CPU:
  •  LGA1155 socket for new 2nd Generation Intel ® Core i7 series processor/Intel ® Core i5 series processor/Intel ® Core i3 series processor/Intel ® Pentium ® processors/Intel ® Celeron ® processors
  • 4+1 Phase Power Design with VRD 12.0 Compliant
  • Supports Intel ® 32nm CPUs
  • Supports Intel ® 22nm CPU
  • Supports Intel ® Turbo boost 2.0 technology
  • Supports Hyper-Threading Technology CPU
  • Intel ® K Series Unlock CPU Support
  • Intel ® Secure Key (Intel 3rd gen CPU i5 or above)
  • Intel ® OS Guard (Windows 8)
  • AES New Instructions (AES-NI) (Intel 3rd gen CPU i5 or above)
  • DMI 20Gb/s
• SYSTEM BIOS:
  • AMI BIOS with 32Mb SPI ROM
  • Audio, LAN, can be disabled in BIOS
  • Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
  • F11 hot key for boot up devices option
  • Supports eBLU
  • Supports eDLU
  • Supports Page Up clear CMOS Hotkey
  • Supports eSF
  • Supports ECS M.I.B III Utility
  • Supports Multi-language BIOS
  • Supports ACPI 3.0 & DMI
  • F7 hot key for boot up devices option
• Chipset:
  • Intel ® Identity Protection Technology
  • Intel ® H61 Express Chipset
  • Supports dual stream HDMI & DP audio
• Memory:
  • Dual-channel DDR3 memory architecture
  • Intel ® Extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
  • 2 x 240-pin DDR3 DIMM socket support up to 16 GB*
  • Supports for non-ECC memory modules
    Note: Please go to ECS website for the latest Memory support list.
    Supports DDR3 1066/1333/1600(with Ivy Bridge)SDRAM
    *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB)
    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
    For Windows?64-bit OS with 64-bit CPU, there is no such limitation
• Expansion Slots:
  • 1 x PCI Express x16 Gen2.0 slot
  • 2 x PCI Express x1 slots
    PCIe Gen3 is supported by Intel 3rd CPU
• On-Board Audio:
  • VIA ® VT1708A 6-channel High Definition audio CODEC
  • VIA ® VT1705 6-channel audio CODEC
  • Compliant with HD audio specification
  • Low Power Consumption
  • 3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
  • Capability for œfull rate BluRay / DVD / HD DVD support.
• On-Board Video:
  • Intel HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
  • Supports Intel ® Quick Sync Video 2.0 (Intel 3rd gen CPU), Advanced Vector Extensions, Clear Video HD Technology, InTru 3D
  • Integrated DirectX 11 graphics processor
  • Supports HDMI 1.4a & Premium Audio
  • Supports OpenGL 3.1(Intel 3rd gen CPU)
  • Supports OpenCL 1.1(Intel 3rd gen CPU)
  • Supports Switchable Graphics
  • Integrated DP with up to 2560x1600 resolution
  • Supports Full HD 1080P Blu-ray / HD-DVD Playback

• Form Factor:
  • Micro-ATX
  • Size, 225mm*180mm (8.6 Inch x 7.1 Inch)
