ECS P965T-A

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Serial port (COM1)
  • 1 x Parallel port (LPT1)
  • 1 x Audio port (Line-in,4x Line-out, SPDIF out)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Audio:
  • Realtek ALC883 support Intel 8-ch HD Audio
  • 2/4/5.1/7.1
  • Compliant HD audio spec.

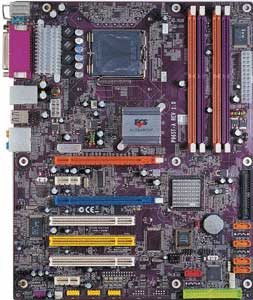

ECS P965T-A Motherboard

• Model:
  • ECS P965T-A Motherboard

• Processor Support:
  • SupportsIntel® Core 2 Quad / Core 2 Extreme / Core 2 Duo /Pentium 4 / Pentium D /Celeron D Processors
  • Support Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • FSB 1066/800/533 MHz


• Chipset:
  • Intel ® 965

• Memory:
  • Dual-channel DDR2 memory architecture
  • 4 x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support 800/667/533 DDR2 SDRAM


• Expansion Slots:
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x16 slot (x4)
  • 2 x PCI Express x1
  • 3 x PCI 32bit/33MHz slots


• Storage:
  • Support by Intel® ICH8
  • 4 x Serial ATAII 3.0Gb/s devices
  • Supported by JMicron® JMB361
  • 1 x UltraDMA 133/100/66 for up to 2 PATA device
  • 1xSATAII 3.0Gb/s devices
  • Support SATA RAID 0, 1


• On-Board LAN:
  • Realtek RTL8110S Gigabit Ethernet Controller


• BIOS:
  • Award BIOS with 16Mb SPI FLASH ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 2.0 specification


• Form Factor:
  • ATX Form Factor, 305mm x 244mm
