Foxconn K8M890M2MA-RS2H

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x D-Sub port
  • 1 x Parallel port (SPP/ECP/EPP)
  • 1 X COM A connector
  • 1 set 5.1 channel Audio jacks (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Special Features :
  • Wake on ring, LAN, USB, keyboard & mouse, STR
  • SuperBIOS-Protect
  • CE-class Video Processing Engine
  • SuperBIOS
  • n-Tune
  • SuperUpdate
  • SuperRecovery

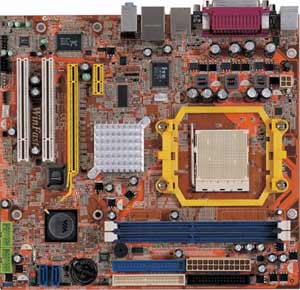

FoxconnK8M890M2MA-RS2H Motherboard

• Model:
  • Foxconn K8M890M2MA-RS2H Motherboard

• Processor Support:
  • Supports AMD Athlon 62 x2 Dual core / Athlon 64FX / Athlon 64 / Sempron processors
  • Socket AM2


• FSB:
  • 2000MT/s


• Chipset:
  • VIA K8M890

• Memory:
  • Two 240-pin DIMM slots
  • Supports dual channel DDR2 800 / 667 memory
  • Supports up to 2 GB DDR2 memory


• Expansion Slots:
  • 1 x PCI-E x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 2 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 2 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
  • RAID 0,1 RAID 0, 1,JBOD


• Audio:
  • Realtek ALC883 (HDA)
  • 2/4/5.1
  • Support for CD In
  • Support for S/PDIF Out


• Video:
  • Integrated VIA Chrome9 IGP Graphics Controller


• On-Board LAN:
  • 10/100M LAN, Realtek RTL8100C


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3


• Form Factor:
  • Micro- ATX, 9.6x 8.8 inch
