• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x VGA
  • 3 x audio jacks (Line In/Line Out/Microphone)
  • 1 x Parallel port
  • 1 X Serial
  • 4 x USB
  • 1 x RJ 45 Port


• Video:
  • Integrated Intel ® Graphics Media Accelerator 3100 (Intel ® GMA 3100)


• Management:
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU Smart Fan Control

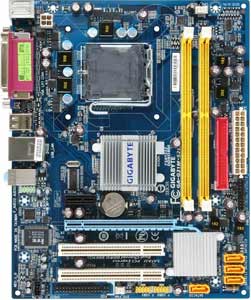

Gigabyte GA-G31M-S2L Motherboard

• Model:
  • Gigabyte GA-G31M-S2L Motherboard

• Processor Support:
  • Support for an Intel ® Core 2 Extreme processor/ Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® processor


• FSB:
  • 1333/1066/800 MHz


• Chipset:
  • Intel ® G31

• Memory:
  • 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
  • Dual channel memory architecture
  • Support for DDR2 800/667 MHz memory modules


• Expansion Slots:
  • 1 x PCI Express x 16
  • 1 x PCI Express x 1
  • 2 x 32-bit 33MHz PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices


• Audio:
  • Realtek ALC662 codel High Definition audio
  • 2/4/5.1-channel
  • Support for S/PDIF Out


• On-Board LAN:
  • RTL 8111B chip (10/100/1000 Mbit) Ethernet Controller


• BIOS:
  • AWARD BIOS
  • 1 x 8 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0


• Form Factor:
  • Micro ATX form factor
  • 24.4 X19.3 CM
