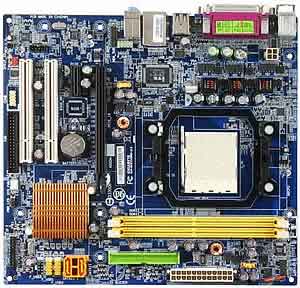

Gigabyte GA-M61VME-S2

• Internal I/O Interface:
  • 1 24-pin ATX power connector
  • 1 4-pin ATX 12V power connector
  • 1 floppy connector
  • 1 IDE connectors
  • 2 SATA 3Gb/s connectors
  • 1 CPU fan connector
  • 1 system fan connector
  • 1 front panel connector
  • 1 front audio connector
  • 1 CD In connector
  • 1 COMB connector
  • 1 Power LED connector
  • 2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
  • 1 SPDIF In/Out connector
  • 1 Chassis Intrusion connector
  • 1 HDA_SUR connector

• BIOS:
  • 1 4Mbit flash ROM
  • Use of licensed AWARD BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

• Special Features:
  • Supports @BIOS
  • Supports Download Center
  • Supports Q-Flash
  • Supports EasyTune
  • Supports Xpress Install
  • Supports Xpress Recovery2
  • Supports Xpress BIOS Rescue

• Hardware Monitoring:
  • System voltage detection
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU / System warning temperature
  • CPU / System fan failure warning
  • Supports CPU Smart Fan function

Motherboard Specifications

• Model:
  • Gigabyte GA-M61VME-S2 (v1.0)

• Processor Support:
  • Socket AM2
  • AMD Athlon 64 FX, Athlon 64 X2 Dual Core, Athlon 64, AMD Sempron

• Chipset:
  • nVidia MCP61V (GeForce 6100 & nForce 400)

• FSB:
  • 2000 MHz

• Memory:
  • 2x 240pin DDR2-800/667/533/400 DIMMs
  • Dual channel
  • Max capacity 8GB

• Expansion Slots:
  • 1x PCI Express x16 slot
  • 1x PCI Express x1 slot
  • 2x PCI slots

• On-Board Video:
  • nVidia GeForce 6100 (CineFX 3.0) Graphics Controller

• On-Board Audio:
  • Realtek ALC883 8-Channel High Definition Audio CODEC

• On-Board LAN:
  • Realtek RTL8201 10/100 Ethernet Controller

• Storage:
  • 1x ATA-133 channel
  • 2x SATA2 ports support RAID 0, 1, 0+1

• Rear Panel I/O Ports:
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 1 parallel port
  • 1 COMA port
  • 1 VGA port
  • 4 USB 2.0/1.1 ports
  • 1 RJ-45 port
  • 3 audio jacks (Line In / Line Out / MIC In)

• Form Factor:
  • Micro ATX
  • 24.4 x 22.5 cm
  • 9.6 x 8.8 inches
