• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 2 x IEEE 1394a ports
  • 1 x coaxial S/PDIF Out connector
  • 1 x optical S/PDIF Out connector
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • 1 X Serial
  • 6 x USB
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek 8111B chip (10/100/1000 Mbit)


• Management:
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU Smart Fan Control

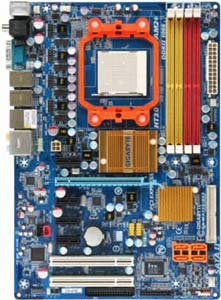

Gigabyte GA-MA770-DS3 Motherboard

• Model:
  • Gigabyte GA-MA770-DS3 Motherboard

• Processor Support:
  • Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor

• FSB:
  • 5200/2000 MT/s


• Chipset:
  • AMD 770

• Memory:
  • 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
  • Dual channel memory architecture
  • Support for DDR2 1066/800/667 MHz memory modules
  • Support ECC memory


• Expansion Slots:
  • 1 x PCI Express X16
  • 4 x PCI Express X1
  • 2 x 32-bit 33MHz PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 4 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1 and RAID 0+1


• Audio:
  • Realtek ALC888 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF In/Out
  • Support for CD In


• Firewire:
  • Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)


• BIOS:
  • AWARD BIOS
  • 4 Mbit flash ROM
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.


• Form Factor:
  • ATX Form Factor
  • 30.5cm x 21.0cm
