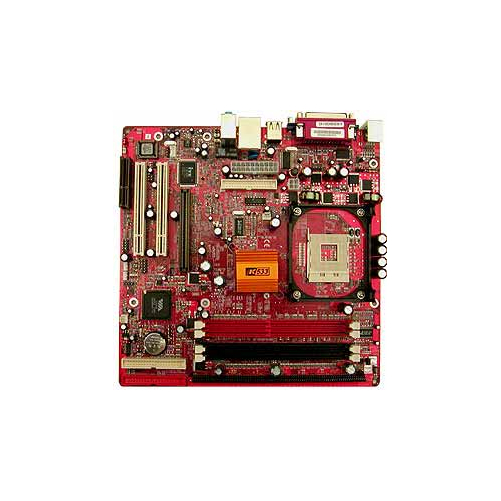

PC Chips M925ALU Socket 478 Supports Pentium 4 / Celeron 400/533Mhz system bus VIA P4M266A (NB) & VT8235 (SB) chipsets. 2 x 184-pin DDR DIMM sockets and 2 x 168 Pin SDRAM DIMM sockets. 2 PCI 1 AGP Slot 1 CNR Slot. On board Audio video and LAN. Micro ATX Form Factor. Motherboard only. No manuals drivers or cables.

• Miscellaneous:
  • Bundle optional an CNR V.90 Fax/Modem Card for internet communication.
  • 2MB Flash ROM on board, provides complates Advance Configuration Power Interface(ACPI) and Legacy PMU.
  • Provides ATX power connector supports various functions of ATX Power such as Suspend, shutdown, Wake on LAN, Wake on MODEM, Wake on Alarm, Interrupt Wake-Up from Keyboard/Mouse, and Keyboard Power On/Off.

Motherboard Specifications

• Model:
  • PC Chips M925ALMU

• Processor:
  • Supports Intel Pentium 4 processors with frequency at 533MHz in Socket 478 for MicroATX form factor

• Chipset:
  • VIA P4M266A / VT8235



• Memory:
  • Provides 2 DIMMs for PC133 SDRAM, 2 DDR DIMMs for PC2100 DDR266 modes, and memory size is expand up to 2 GB.

• Expansion Slots:
  • Provides an AGP slot and 2 PCI slots; supports AGP 4X mode; fully compliant AGP2.0 and 2 PCI 2.2 Specification.

• IDE Controllers:
  • Ultra DMA 66/100/133; fully compliant with PC'97 and PC'98 Spec.



• Audio:
  • Provides an CNR slot; DirectSound AC97 Codec on board, for Audio, Modem and Network application.
• Video:
  • Embeded 3D AGP Graphics Accelerator in North bridge; AGP rev. 2.0 spec. compliant

• LAN:
  • 10/100Mbps Fast Ethernet on board, supports IEEE 802.3 and 802.3u standards, and fully compliant ANSI X3.263 TP-PMD physical sub-layer.

• Rear Panel I/O Ports:
  • Six USB 2.0 ports (four back-panel ports and two onboard headers).

• Form Factor:
  • Micro ATX
