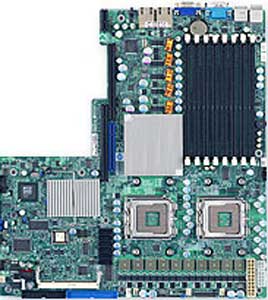

Supermicro
X7DGU
Motherboard
Dual 771-pin LGA Sockets, Supports up to two Intel ® 64-bit Xeon ® processor(s), Intel ® 5000X (Greencreek) chipset, 1 (x16) PCI-e, 1x 64-bit 133MHz PCI-X, or 1 (x8) PCI-Express, DDR2 DIMM Up to 32 GB, Dual LAN, USB, IDE, SATA, RAID, Video, Propietary (12" x 13.05") |
|
- Internal I/O Interface:
- 1 Floppy controller; 1.44 MB, 2.88 MB
- 3x USB internal headers
- 1 Fast UART 16550 serial header
- Six Serial ATA ports
- Rear Panel I/O Ports:
- 2 RJ45 LAN ports
- 2x USB rear ports (Total 5 USB 2.0 Compliant / 1.1 Compliant)
- 1x VGA Port
- 1 Fast UART 16550 serial port
- Stacked PS/2 keyboard and mouse ports
- Video:
- ATI ES1000 controller
- 16 MB of video memory
- Manageability:
- ACPI/API Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- Power-on mode control for AC power loss recovery
- Internal/External modem remote ring-on
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory Voltage, Chipset Voltage
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans
- 8x fans with tachometer status monitoring
- Status monitor for speed control
- Support 3-pin speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x fan connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- UID / Remote UID LED ( IPMI Only )
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- Super Doctor III, Watch Dog, NMI
- Optional IPMI (Intelligent Platform Management Interface) 2.0
|
Supermicro
X7DGU
Specifications
- Model:
- Supermicro
X7DGU
Motherboard
- Processor Support:
- Dual 771-pin LGA Sockets
- Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type below:
-
Quad-Core Intel ® Xeon ®Processor 5300 sequence (Clovertown processor) up to 2.66 GHz
- Dual-Core Intel ® Xeon ®Processor 5100/5000 sequence (Woodcrest/Dempsey processor) up to 3.73 GHz
- FSB 1333 / 1066 / 667 MHz system bus
- Chipset:
-
Intel ® 5000X (Greencreek)
- ESB2
- Memory:
- Eight 240-pin DIMM sockets
- Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
-
Dual branch memory bus
- Memory must be populated in pairs
- Memory Mirroring supported
- 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs 256, 512 MB, 1GB, 2GB, 4GB 1.8V only, 1.5V(AMB)
- Corrects single-bit errors, Detects double-bit errors (using ECC memory)
- Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)
- Expansion Slots:
- Left Side 1 (x16) PCI-Express slot
- Right Side 1 64-bit 133MHz PCI-X or
- 1 (x8) PCI-Express
- IPMI
- On-Board LAN:
- Intel ® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
-
Intel ® I/OAT support for fast, scaleable, and reliable networking
- Storage:
- Intel SB SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support (Windows Only)
- RAID 0, 1, 10 support (Linux)
- Six SATA hard drives supported
- Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- 200-pin IPMI slot (SIMSO)
- (Optional: AOC-SIMSO/+)
- For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)
- Form Factor:
- Propietary
- 12" x 13.05" (30.5cm x 33.2cm)
- BIOS:
- 8Mb Flash EEPROM with Phoenix ® BIOS
- Plug and Play (PnP)
- ACPI 1.0/ 2.0, PCI 2.2, DMI 2.3
- BIOS Rescue Hot Keys
- SMBIOS 2.3
- USB Legacy support
|
